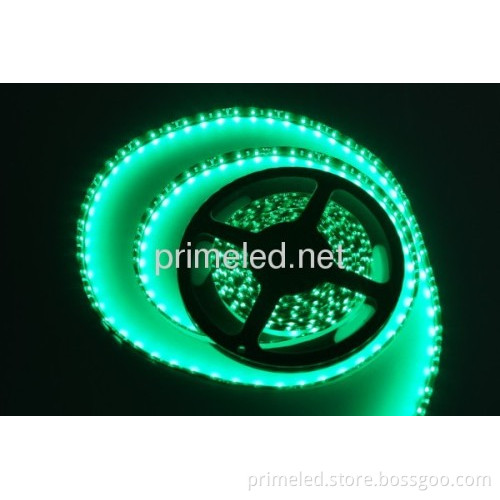

Green Waterproof 3528 smd LED Strip lights



Green is the color of emeralds, jade, and growing grass.

Green Waterproof 3528 smd LED Strip lights
are terrific for decoration and DIY use, wiht white pcb/ copper/black pcb, while copper type is the most popular. Also, other single single colors are available, like white, warm white, red, blue, yellow, pink, orange and UV are available.

They can be used in a wide variety of applications, such as signage, channel letters, backlighting, panel edge lighting, under cabinet lighting, landscapes, step and stairs, motorcycle and automotive lighting, marine and recreational vehicle, retail and display case lighting, glass art, home theaters, media rooms and more.
Features:
> Dimmable brightness and changeable color as you like;
> Flexible and can be separated in every 3LEDs along cut-edge or re-joint;
> Easy to install with 3M tape on backing or clips;
> Safe application at 12V or 24V;
> No hazards to environment;
> Long lifespan of 50,000 hours.
Prime Green Waterproof 3528 smd LED Strip lights are available in 3 varieties:

B) Water resistance type with an encapsulated plastic Gel, 3M tape on backing, IP66;
C) Water resistance type with a protective Silicone jacket, can be fixed with clips, IP66
D) Waterproof type with silicone jacket and Gel inside, IP67.


Technical Data:
Part NO. (IP66)
PFS-3528W60B-12
PFS-3528W120B-12
Part NO. (IP66)
PFS-3528W60C-12
PFS-3528W120C-12
Part NO. (IP67)
PFS-3528W60D-12
PFS-3528W120D-12
Voltage:
12V or 24V
12V or 24V
Size:
10mm wide, 5 meters a reel
10mm wide, 5 meters a reel
LED Type:
3528SMD
3528SMD
Quantity:
60 LEDs per meter
120 LEDs per meter
Power:
4.8W per meter
9.6W per meter
Color:
red, green, blue, yellow, white, warm white, pink, orange
red, green, blue, yellow, white, warm white, pink, orange
PCB in:
Copper, white or black
Copper, white or black
Beam Angle:
120 degrees
120 degrees
Expected Life
50,000hours
50,000hours
Warranty:
Two Years
Two Years

FAQ:
1. Can we cut them in short pieces, and re-joint?

Yes, can be cut in every 3 LEDs, minimum, and can re-joint with cables.
2. How Can I make them dimmable or color-changing?

First, you need a power supply (transformer) to convent main voltage to 12V or 24VDC;

Second, get a dimmer or controller from us or your market, wire them follow our instruction, and then power on;

Third, you go¡­
3. How can I do with them to work at 10meter long or more?

If only strips without dimmer or controller, get power in parallel;Waterproof 3528 LED flex Strip, white,on White PCB

How Does a led strip come out?

60led/m Warm White LED Strip Lights

If waterproof type with resin cover,
60led/m Warm White LED Strip Lights

How to order samples?
1, Samples are available at your costs;
2, You tell us which items, color and quantity you want, 5pcs as MOQ;
3, I will issue a Performa invoice for the samples order;
4, Production will go, if we do not have the stocks, after your payment by TT / Western Union;
5, Samples will be sent out by DHL or UPS, as you like.
Warranty Terms:
1. Prime LED offers a warranty period of TWO years since the date cargos was shipped out;
2. Prime LED will take the duty, and send free replacements or parts, after our confirmation of the evidence we request, if failure occurs under normal and right application within the period;
3. Prime LED will offer you charged replacements or parts, if failure or damage due to incorrect operation or application.
