18W T8 Equivalent 10W 600mm LED T8 Tube

The 600mm/2-feet LED T8 tubes come with 10W output,144pcs 3528smd, 900LM, which are suitable for use in offices, factories, supermarkets, task lighting, store displays, warehouse illumination and under cabinets.

Why LED T8 Tubes?

More and more LED T8 Tubes are accepted by people, due to their advantages of longer lifespan, Environment-friendly, as well as:

1. Lighting source Efficiency

Conventional LED T8s have output of 55-80LM/W, while LED T8 Tubes have about 100LM/W.

2. Fixture efficiency

Since conventional T8's 360deg.beam angle, about70% brightness can reach the desks or floor, where we want, while LED T8 with 120deg. is quite enough for the applications.

So, set Philips T8 as an example, 36W T8 with 72LM per Watt, 2592LM, It has an active brightness of 1814LM (70% as fixture efficiency), so a 18-22W LED T8 tube with output about 1800LM can be replacement to the former.

3. Power efficiency

A Philips T8 with rated power of 36W, has an actual power consumption is 42.2W, with 6.4W ballast, while LED Tube's efficiency is about 90%, so 18-22W LED T8 tube has actual power consumption of 20-24W. This means, LED T8 tubes will save you about 50% electricity bills.

Dimension	60 CM
Diameter	26 mm
PowerConsumption	10W
Lumens	900LM
OperationalVoltage	AC:110V(90-140V)/220V(185-265V)
ColourTemperature	3000/4500/6500K
Appearance	Frosted/Transparent
LuminaireEfficiency	> 90%
Colourrendering index	> 80%
PowerSupply Efficiency	> 87
ViewAngel	170º
OperationTemperature	-20ºC~+50ºC
StorageTemperature	0ºC~45ºC
WorkingHumidity	15%~70%
StorageHumidity	10%~90%
MainMaterial	Aluminumbase+PC
IPRating	IP40
ExpectedLife	50,000Hours
Certifications	CE, RoHSand ETL
Warranty	TwoYears

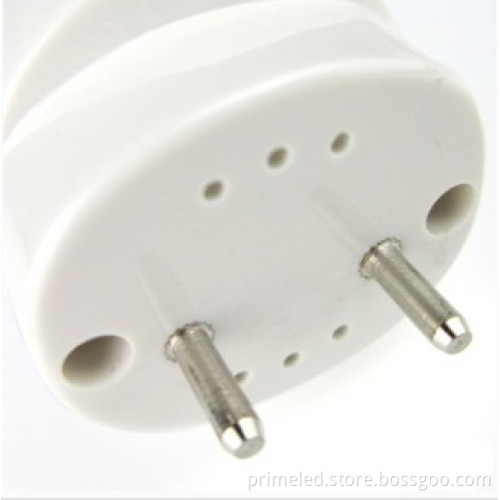

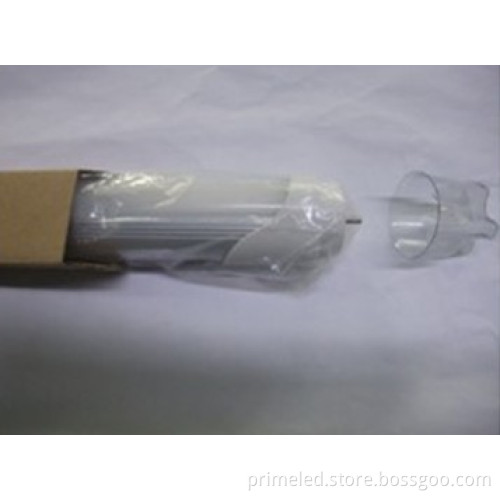

structures of led T8 tube

18W/ 22W/ 25W 1200mm LED T8 Tubes

Prime LED can produce LED T8 tubes according to your specific needs, like color temperature, dimming (18W max.), and external driver, as well as:

Bypass the ballast and remove the starter within the lamp bracket before mounting on LED T8 tubes
.
18W/ 22W/ 25W LED Tubes, 1200mm, 78-90 LM/W

How to order samples?

1, Samples are available at your costs;

2, You tell us which items, color and quantity you want, 5pcs as MOQ;

3, We will issue a Performa invoice for the samples order;

4, Production will go, if we do not have the stocks, after your payment by TT / Western Union;

5. Lead time would be about 7-12days;

6, Samples will be sent out by DHL or UPS, as you like.

Warranty Terms:

1. Prime LED offers a warranty period of TWO years since the date cargos was shipped out;

2. Prime LED will send free replacements or parts, after our confirmation of the evidence we request, if failure occurs under normal and right application within the period;

3. Prime LED will offer you charged replacements or parts, if failure or damage due to incorrect operation or application.
