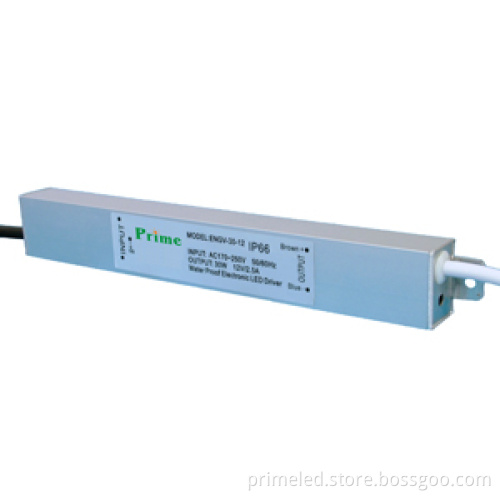

30W Waterproof Power supply 12/24VDC

30W Waterproof Power supply, both 12V and 24VDC are available, with IP67, which is suitable for outdoor applications.

Features:

1. Constant Voltage design

2. Universal AC input

3. Fully encapsulated with IP67 level

4. Withstand 300VAC surge input for 5 seconds

5. Protections: Short circuit/Over load/Over current

6. Cooling by free air convection

7. 100% full load burn-in test

8. High Reliability

Size of waterproof 30W Power supply

MODEL		PS-30W-12	PS-30W-24
OUTPUT	Rated DC voltage	12V	24V
	Rated current	2.5A	1.25A
	Current range	0~2.5A	0~1.25A
	Rated Power	30W
	Voltage tolerance	12±0.5V	24±0.5V
	Ripple & Noise	200mVp-p
	Load regulation	±2%
	Setup, Rise time	50ms/230VAC
	Hold up time	20ms/230VAC
INPUT	Voltage range	170~260VAC;
	Frequency range	47~63Hz
	Efficiency (Typ.)	>80%	>80%
	Leakage current	0.25mA/240VAC
PROTECTION	Over Current	110%~150%
		Protection type: Hiccup mode
	Short circuit	Short circuit protection
ENVIRONMENT	Working TEMP.	-25℃~50℃
	Storage TEMP.	-40℃~80℃
	Working Humidity	20~90% RH non condensing, refer to IP67
	Vibration	10~500Hz,2G 10min/1cycle,period for60min,each along X,Y,Z axes
	TEMP. coefficient	±0.03%/℃(0~50℃)
SAFETY & EMC	Safety Standards	IP67 approved; Designrefer to LVD EN61347-2-13:2005,EN61347-1:2008
	Withstand Voltage	I/P-O/P:2KVAC,I/P-COVER: 2KVAC , O/P-COVER:500VAC
	Isolation Resistance	I/P-O/P:>100M Ohms/500VDC/25℃/70%RH
	EMC	EN55015:2006/A2:2009,EN61000-3-2:2006/A2:2009,EN61000-3-3:20
OTHERS	MTBF	50KHours (25℃)
	Dimension	2223020mm(LWH)
	Weight	0.26Kg,80pcs/21.3Kg/0.023CBM
