Basic Info

Product Description

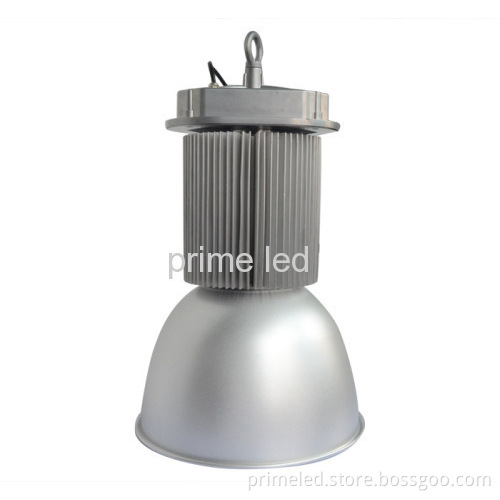

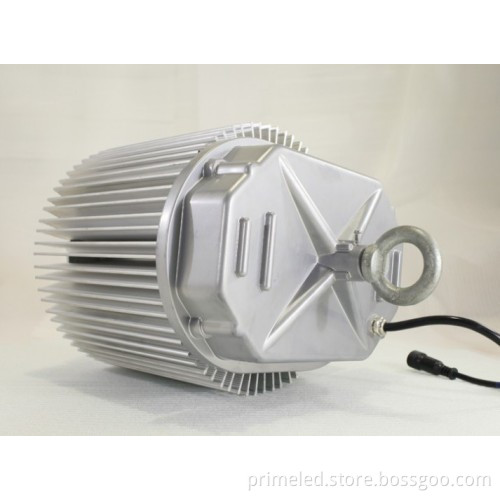

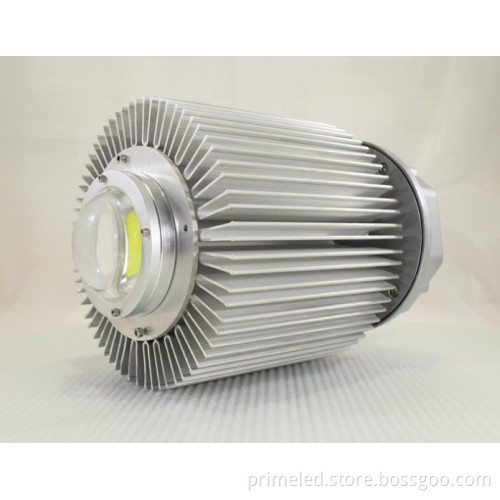

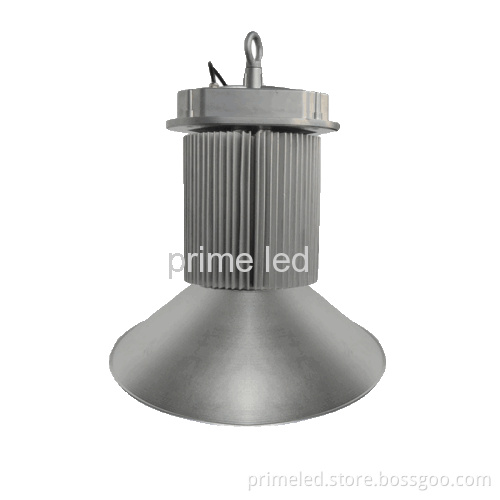

220W LED High Bay Lights

LED High Bay Light is ideal for Commercial and Industrial applications, like shops, warehouses, manufacturing workshops, ballrooms and or retail areas. 220W LED high bay lights, with USA high power BridgeLux LEDs and Mean Well Drivers, offer significant energy savings and low maintenance with much longer lifespan compared to traditional halide or sodium lamps.

The 220W LED High Bay lights can be fitted with different reflector shields, like 45, 90 and 120degree.

Features:

1. Exceptional energy saving compared to conventional HID/HPS

2. Lower power, higher efficiency

3. Crisp white light

4. Longer life time of 50,000hours, low maintenance costs

5. Environmental friendly: Lead and mercury free

6. Excellent heat sink design with low temp

7. Compact, lightweight and stylish design

8. IP54, water resistant and dust proof

size of 220W LED High Bay Lights

Input		AC85V-265V
Frequency		50Hz-60Hz
LEDworking voltage		DC30-36V
LED		BridegeLuxLED, One
LEDpower consumption		220W
Totalpower consumption		238W
LEDlamp output lumen		100-105LM/W
CCT	Warmwhite	2700K-3500K
	Purewhite	4500K-5500K
	Coolwhite	6000K-7000K
Color index	Warmwhite	Ra70
	white	Ra70
LEDlamp output lumens		Warmwhite	25,000LM
		Purewhite	26,250LM
		Coolwhite	25,750LM
Totalharmonic distortion		≤9%
PF		0.98
Lampefficiency		90%
Illuminanceuniformity		0.7
Beam Angle		120 Deg.
Averageilluminance		Height6M	596.4LUX
		Height8M	336.0LUX
		Height10M	214.8LUX
Illuminancearea		Height6M	￠16M Round
		Height8M	￠22M Round
		Height10M	￠27M Round
Lightdistribution		Symmetric/ Circle spot
Lightdesign		LED+Reflector
LEDjunction temperature		≤70℃
Workenvironment		-40℃——+45℃
Storageenvironment		-40℃——+65℃
Protectionclass		IP54
LEDlifespan		50,000hrs
PSU connection	Brown	L(live line)
	Blue	N(null line)
	Yellowor Green	G(ground line)
Heatsink color		Blackand Silver
Certificates		CE/RoHS
G.W(Without reflector)		11.4Kg
PackingCM (Withoutreflector)		29.82643

Installation Instruction:

1. AC85-265V, 50-60Hz input.

2. Handling with care.

3. Tighten the rings (rings for M20 thread).

4. Put hook inside the rings slightly.

5. Ensure that the working environment is within the specified temperature range.

6. Prevent electric leakage during installation.

7. Adopt appropriate waterproof measures for the external power cord.

8. Don't break any fire rules and regulations with unconventional usage of the lamp.

9. Please proceed to the installation with a professional electrician.

10. Reflector installation:

(1). Loosen screw "A" on the heat sink.

(2). Fix reflector with the screw correctly.
(3). Lock screw.

Maintenance Tips:

1. Turn off switch before any acts.

2.Clear lamp lens with dry rag, clean lens leads good illumination.

3. Clear dust on heat-sinking, to keep good heat dissipation performance.

4.Open the driver/power supply box with a screw driver and take the driver out, When replace a power supply, and Make sure to plug the new driver with the right connection. (L-Live line with brown color wire, N-Null line with blue color wire, G-ground line with yellow or green color wire).
