Product Description

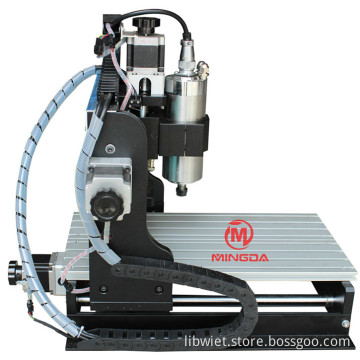

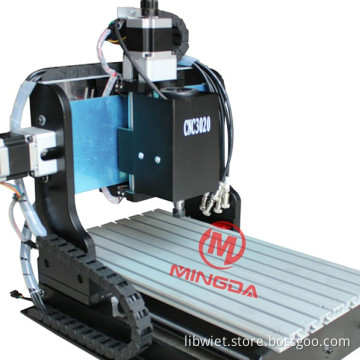

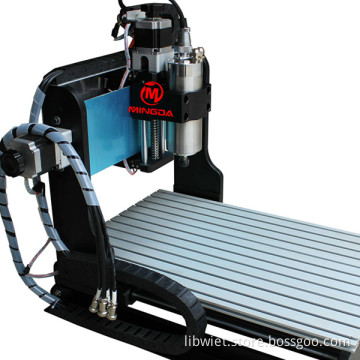

Engraving machine design uses: mainly used in PVC, acrylic, double color boards, engineering plastic, bakelite, and other non-metallic materials solid wood engraving and milling, graphite electrode machining, is also suitable for carving PCB circuit board, wood mold model, and opening hole or carving for plastic boxes, aluminum alloy chassis, panel which is under limited size, also can be the low feed rate on aluminum, copper and other metal materials for three-dimensional carving and milling processing; it can also be used as a simple primary three-dimensional CNC table to use, such as the test laser engraving, CNC dispensing, CNC positioning, metal ( nameplate marking etc. ).

Model	3020
Dimension	550x400x350mm
Work area	450x240mm
X,Y,Z axis woking travel	300x200x50mm
The Max thickness of Carved objects	80mm
Rack material	6061+6063Aluminum alloy
Transmission unit	X ,Y,Z axis is 1204 T Screw
Sliding unit	X:Φ13,Y:Φ16,Z:Φ12

Consumption	DC110V,240W
Spindle Power	500W/AC220, SCM stepless speed regulation
Speed (r/pm)	0-14000
Clamping diameter	3.175mm
Cooling way	air cooled

feeding speed max(mm/min)	4000
Carving speed(mm/min)	0~1000
Carving accuracy	0.03mm
Repositioning Accuracy (mm)	0.03mm
Input voltage	220V or 110V
Instruction format	G code (tap, nc, ncc, text)
Compatible software	Mach3/TYPE3/ArtCAM/CAD/CAM etc
