3G Video Alarm Server,Security alarm system,wireless WIFI Cameras,video surveillance and alarm monitoring,security surveillance

3G Video Alarm Server,Security alarm system,wireless WIFI Cameras,video surveillance and alarm monitoring, IP Camera,security surveillance

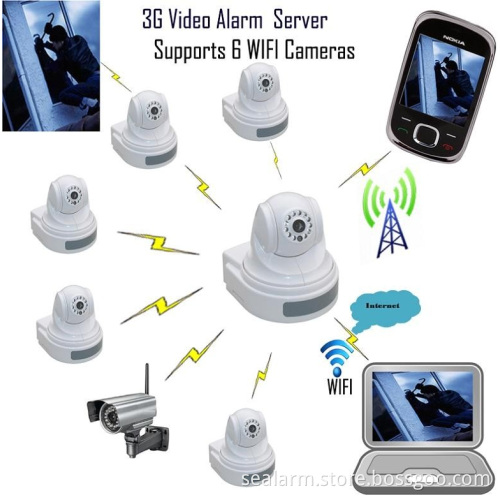

The 3G Video Alarm Server MD-1 is the latest 3G technology solution for video surveillance and alarm monitoring unit. It is not only an alarm panel that can support lots of wireless sensors, but also a 3G Video Server that can support multi wireless WIFI Cameras.

Moreover, the 3G Video Alarm Server MD-1 is also can be used as IP Camera with high-efficiency H264 hardware encoder and the industry leading H263 software encoder. It can simultaneously output video streams in both formats. It concurrently supports both 3G video call and IP video surveillance. the user can access it through Video Phone directly without any delay, and access it through internet without any cost to save video phone expensive cost.

The 3G Video Alarm Server MD-1 seamlessly integrates the traditional security IP camera with 3G mobile phone network and IP network by using the safe and stable embedded Linux control system, as well as the embedded 3G-Modem and the high efficiency 3G protocol stack.

The world`s first hardware solution that supports TD-SCDMA, WCDMA and EVDO networks and provides multiple choices for users.

What you need is a 3G WCDMA Card.

What advantages of the 3G Video Alarm Server MD-1?

1. Multi-ways to Access it, accepts Video Phone, Internet or Smart Phone through internet;
2. Supports upto 6 wireless WIFI cameras;
3. Supports WIFI communication to access internet;
4. Supports 32G SD Card Memory;
5. High-efficiency H264 hardware encoder and the industry leading H263 software encoder;
6. Using the safe and stable embedded Linux control system, and embedded 3G-Modem and the high efficiency 3G protocol stack.

Functions & Features of the 3G Video Alarm Server MD-1:

• WCDMA 3G Network;
• Real-time video surveillance through 3G video call; Easy to use; Clear and smooth picture quality;
• Support multiple camera connection; Allow switching between up to 6 cameras;
• Wide coverage surveillance PTZ camera; Horizontal angle: 270°and Vertical angle: 90°;
• 4-Level zoom control; Enlarge portion of image with D1 quality which has fine details;
• Motion detection alarm function. Allow surveillance at anytime with 3G mobile phone callback feature;
• Supports various wireless detectors, PIR Motion detector, Smoke detectors, Panic Button, etc.;
• Remote video recording and motion detection triggered video recording; Support video recording history browsing using 3G phone at anytime;
• Video surveillance through mobile Internet; Fully support three main mobile device types : Android, iPhone and Windows Mobile;
• Enterprise-level windows platform video surveillance software; Monitor and manage multiple cameras;
• Safe Privacy protection; Protected by both password authentication and phone number filtering;
• Multiple ways of alarming: inform users through video calls, SMS auto alarm center etc. In poor 3G network situation, auto-alarm through normal voice call;
• Supports Night Vision, the distance about 6meters;
• Supports two way voice communication to talk on-site;
• Supports 32G SD Card Memory.

Standard Package list of the 3G Video Alarm Server MD-1:

Mainframe X1

AC/DC AdaptorX1

User Manual

Optional Accessories (Wireless):

PIR Motion Sensor Glass Break Sensor

Magnetic Window Sensor Magnetic Steel Scrolling Door Sensor

Infrared Photoelectric Beam Fence Our Other Wireless Sensors

Specifications of the 3G Video Alarm Server MD-1:

Rated Voltage: 9~12VDC 1.5A

Standby current: 120mA

Working temperature: -10℃-+60℃

Storage temperature: -20℃-+60℃

Relative humidity: 10-90%, No condensation

Communication protocol: WCDMA 3G Network

IR LED: at night>6m

Wireless sensor receiving frequency: 433.92 MHz

Size: 140mmX76mmX48mm (LXWXH)

Net Weight: 1.00Kg
