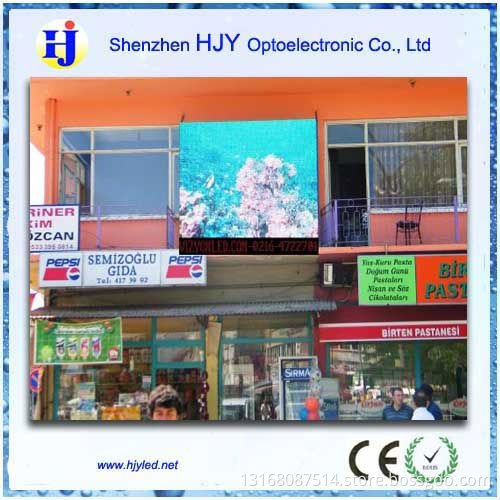

P10 outdoor wall mounted led display
Product Features:
1. High brightness and can be adjusted to meet the customers' requirement based on the change of the environment.
2. Best uniformity, commendably solve the problem of the mosaic, with the excellent consistency of luminescence.
3. Clear, delicate and vivid display effect of the videos, images, texts etc.
4. Big viewing angle to 120 degree at horizontal line, 0 degree at vertical line, you can see at every angle within this range, no picture change, no color excursion
5. Can relace each modules, so the cost of maintaining is lower,
6. The company logo can be stamped on cabinet.
7. Input signal: HDTV CATV NTSC PAL S-video VGA VCD DVD
8. Distinctive modulization design, easy to carry, install, dismantle and maintain.
9. Life time is more than 100, 000 hrs with lower power consumption.
It can be used in advertisement, stage, stadium, exhibition, TV-Show,mansion video wall, shopping mall, banks, schools,
bus station, airport, gym, market, factories, monitoring centers,hospitals, bars etc.
Specification:
| No | Specification | Parameter |
| 1 |
Module size |
160*160mm |
| 2 |
Pixel pitch |
10mm |
| 3 |
Pixel density |
10,000dots/m2 |
| 4 |
Pixel configuration |
1R1G1B |
| 5 |
Pixel resolution |
W:16dots*H:16dots |
| 6 |
Best viewing angle |
10-100m |
| 7 |
Temperature |
Storage: -35degree~+85degree Working: -30degree~+80degree |
| 8 |
Working voltage |
AC220V/110V±10% |
| 9 |
Average power consumption |
600w |
| 10 |
Max. Power consumption |
1000W/sqm |
| 11 |
CPU |
Pentium4 or above |
| 12 |
Operating system |
WIN98/2000/NT/XP |
| 13 |
Control method |
Synchronization |
| 14 |
Driving device |
1/4scanning |
| 15 |
Grey scale/colors |
256 levels of each color(R/G/B)/16.7M color |
| 16 |
Brightness of white balance |
More than 9000cd/sqm |
| 17 |
Brightness adjustment |
256 levels of each color(R/G/B)by software |
| 18 |
Video signal |
PAL/NTSC |
| 19 |
Operating ambient humidity |
10%--95% |
| 20 | Control system |
DVI display card+full color controller card |
| 21 |
Power switch |
Automatic switch |
| 22 |
Display mode |
1024*768 |
