New products P8 outdoor RGB led display module
- Payment Type:
- T/T
- Incoterm:
- EXW
- Min. Order:
- 10
- Min. Order:
- 10
- Delivery Time:
- 20 Days
- Transportation:
- Ocean, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Payment Type: | T/T |
| Incoterm: | EXW |
| Certificate: | CE,FCC |
| Transportation: | Ocean,Air |

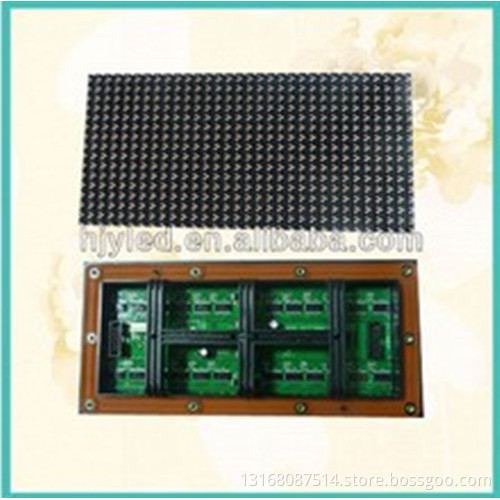

New products P8 outdoor RGB led display module
Specifications
1)High Performance
2)Long life-span more than 100,000hours
3)Wide dynamic range
New products P8 outdoor RGB led display module
|
Pixel Pitch (mm) |
8 |
|
One Pixel |
1R1G1B |
|
Density of Pixel(dots/m2) |
15625 |
|
Drive Method |
Constant current |
|
Control Method |
1/4 scan |
|
Brightness in White Color(cd/m2) |
≥7000 |
|
Gray scale |
13-16bit |
|
Color Quantity |
≥68.7billion |
|
Frame frequency |
≥60HZ/S |
|
Refresh frequency |
≥1000HZ/S |
|
Brightness adjust way |
Manual RGB each color 256,are level ,automatic 100 grades are adjustable |
|
Viewing Distance (m) |
10-160 |
|
Viewing angle (hor/vert) |
110°/55° |
|
Protection against water and dust |
IP65 front/IP54 rear |
|
Pixel out of control rate |
<0.0001 |
|
Life span |
>100000 hours |
|
Display resolution/Module(dots) |
32×16 |
|
Module Size (mm) |
256×128 |
|
Cabinet size (W/H)(mm) |
1024×1024 |
|
Weight with cabinet (kg/m2) |
≤50 |
|
Cabinet resolution (W/H)(mm) |
128x128 |
|
Working temperature |
-20°C~+45°C |
|
Working voltage |
220/110VAC,50/60Hz |
|
Max.power consumption (W) |
≤800 |
|
Control system transmission |
DVI display card + main controller + fibre transmisson or Rj45 (optional) |
|
Video signal |
S-VHS,DVD,TV,Satellite,Color-camera,PC-VGA |
|
Adopted spare parts |
Leds,led modules,cables etc. |
|
Certificates |
CE,ROHS,CCC |
|
Software |
Led studio/LEDT9 software is free |
