P4 indoor flexible led display
- Payment Type:
- T/T
- Min. Order:
- 1 Square Meter
- Min. Order:
- 1 Square Meter
- Delivery Time:
- 20 Days
- Transportation:
- Ocean, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Payment Type: | T/T |
| Certificate: | CE,FCC |
| Transportation: | Ocean,Air |

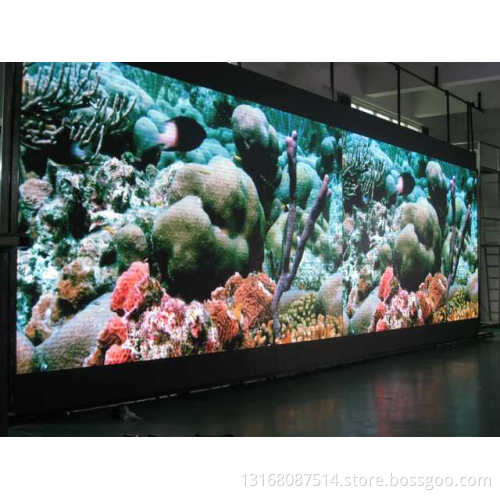

P4 indoor flexible led display
Quick Details:
1.New design, light weight
2.Low consumption
3.support remote control, 3G
LED Display Features:
• High brightness /refresh rate/color contrast ratio.
• Energy saving IC and special design of circuit diagram, power consumption to be decreased by 35-50%.
• Flat screen, no gap. Panels were made by high-precision molding plastic injection, no slit on the screen.
• Professional radiant calibration system to make sure the color and brightness uniformity.
• Perfect solution for heat ventilation, good water-proof and stable performance.
• First-class LED chip: Supplied by Silan, Cree, Epistar or other high strictly selected LED chip to ensure
the long life time and high brightness of our LED screen system.
|
Item |
Technical Specification |
|
Pixel |
Pixel pitch: 4mm |
|
Pixel configuration: 1R1G1B |
|
|
Brightness: Red: 300mcd Green: 850mcd Blue: 180mcd |
|
|
Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm |
|
|
Module resolution: 32×32 pixels |
|
|
Module |
Module size: 128mmx128mm |
|
Cabinet size: 640mm×640mm×100mm |
|
|
Cabinet |
Cabinet resolution: 25600 pixels |
|
Cabinet material: Iron |
|
|
Gross weight: 45kg |
|
|
Module quantity: 25pcs= 5(w) x 5(h) |
|
|
Power consumption : Max.:1400W/m² Everage: 600W/m² |
|
|
Screen parameter |
Drive method: 1/16 scanning |
|
Brightness: 2000cd/m² |
|
|
IC driver: MBI 5024 |
|
|
Density: 62500 pixel/m² |
|
|
Whole display flatness: ≤ 1mm juncture |
|
|
Best view distance: ≥ 3m |
|
|
Viewing angle: Horizontal: 120° Vertical: 120° |
|
|
Humidity(RH): ≤ 90~95% |
|
|
Working temperature: from -30°C to +60°C |
|
|
Working voltage: AC220V/110V±10% |
|
|
Refresh frequency: ≥ 300Hz |
|
|
Frame rate: ≥ 60Hz |
|
|
Protection grade: IP67 |
|
|
MTBF: More than 10000hrs |
|
|
Life time: 100,000 hrs |
|
|
Control system |
Control system: Linsn |
|
Signal interface: DVI |
|
|
Communication distance: Internet cable: ≤120m / Fiber cable: 1000m |
|
|
Systems operating platforms : XP,WINDOWS(WIN95,WIN98,WIN2000) |
