P6 indoor SMD led display
- Payment Type:
- T/T
- Incoterm:
- EXW
- Min. Order:
- 1 Square Meter
- Min. Order:
- 1 Square Meter
- Delivery Time:
- 20 Days
- Transportation:
- Ocean, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Payment Type: | T/T |
| Incoterm: | EXW |
| Certificate: | CE,FCC |
| Transportation: | Ocean,Air |
P6 indoor SMD led display
Quick Details:
1.high fresh frequency
2.excellent quality
3.quick delivery
Product Features:
1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3) To pictures and character, have clear, exquisite and real display effect
4) Big viewing angle to 140 degree at horizontal line,140 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair

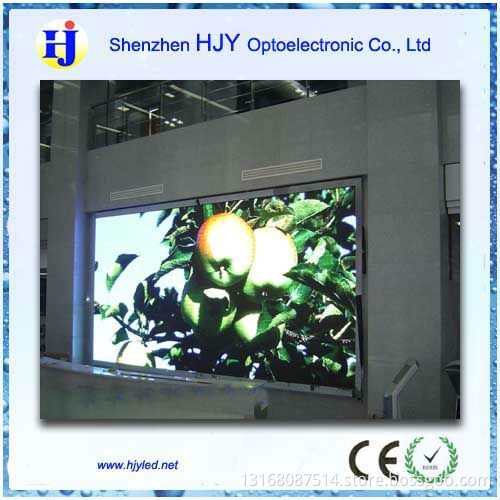

Indoor full color LED display could be used in indoor environment such as municipal mansion, enterprise hall, show room, cinema, stage, ect.
P6 indoor SMD led display Specification:
| No | Item | Specification |
| 1 |
Pixel pitch |
6mm |
| 2 |
Pixel configuration |
1R1G1B |
| 3 |
Module size |
192mmx96mm |
| 4 |
Module resolution |
32x16pixels |
| 5 |
Cabinet resolution |
15360 pixels |
| 6 |
Cabinet size |
960mm×576mm×100mm |
| 7 |
Cabinet material |
IronAluminium |
| 8 |
Power consumption |
Max.:800W/m² Average: 400W/m² |
| 9 |
Drive method |
1/8 scan constant current |
| 10 |
Brightness |
2200cd/m² |
| 11 |
IC driver |
MBI 5024 |
| 12 |
Density |
27777dot/m2 |
| 13 |
Whole display flatness |
≤ 1mm juncture |
| 14 |
Viewing angle |
Horizontal: 120° Vertical: 60° |
| 15 |
Humidity(RH) |
90~95% |
| 16 |
Working temperature |
from -20°C~ +50°C |
| 17 |
Protection grade |
IP67 |
| 18 |
MTBF |
More than 10000hrs |
| 19 |
Life time |
100,000 hrs |
| 20 |
Control system |
Linsn |
| 21 |
Signal interface |
DVI |
