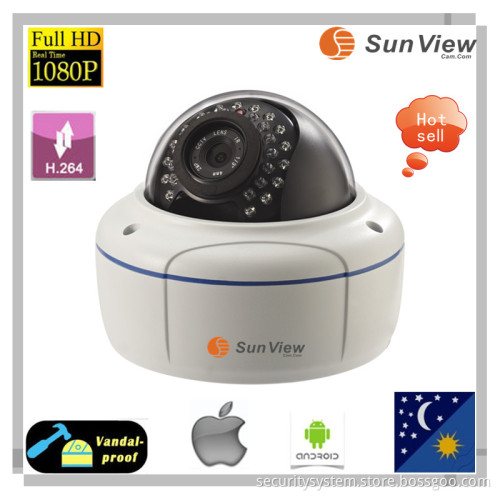

SunView SV-D20LPS 1080P P2P ONVIF low lux sony varifocal lens HD IR Dome Megapixel IP Camera system security

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	shenzhen,chnia

Product Description

Product Overview

feature

1. High resolution 1/2.5[ 2.0 MegapixelCMOS Sensor

2. Integrated 2.8-12mm Megapixel lens

3. Day and night application makes 20M IR view

4. H.264 compression

5. Real time transmission up to 25FPS2MP, D1

6. Two-way audio supported

7. Hardware motion detection supported

8. DC 12V or Power over Ethernet (IEEE 802.3af)

9. Onvif compliant

Specification


	Device	2.0 Megapixel Sony MX 122 CMOS sensor
	Size	1/2.5" inch
	Effective Pixels	1080P
Min.Scene Illumination	Color	0.15 LUX(IR ON)
	B/W	Yes
	IR Sensitivity	Yes
	IR Cut	Yes
Lens	Lens	2.8-12mm varifocal lens
	Viewing Angle	33°-78°(Horizontal)
Linux System		Internal Linux system
Day/Nigh	IR distance	30*F5, IR distance 20 M
Functions	Motion Detection	Yes
	Electronic Shutter	1/5-1/15,000 sec
	BLC	Yes
	AGC	Auto
	White Balance	Auto
S/N Ratio	S/N Ratio	>50 dB
Video Compression	Compression	H.264
	Picture Resolution	1080P
	Bit Rate	80 K~ 2.0 M bps
	Image Frame Rate	25FPS
Audio	Compression	G.711
	Two way audio	support
Alarm I/O	Alarm I/O	1 channel in/out put
Casing	Mount Types	Wall Bracket
Network	Ethernet	Ethernet (10/100 Base-T),RJ-45 connector
	Protocol	TCP,UDP,IP,HTTP,FTP,SMTP,DHCP,DNS,ARP,ICMP,POP3,NTP,RTP, and RTCP
Software	Web Browser	Microsoft Internet Explorer 6.0 above
	SDK	SDK-H
	Security	Administrator password protection
Operating	Temperature	-30°~60°C
	Humidity	-10~85%
Power	Power Requirement	PoE (IEEE802.3af)
	Power Comsumption	12-13W (DC 12V,1A)
Physical	Dimension
	Weight
Approvals	Certification	CE ,FCC
