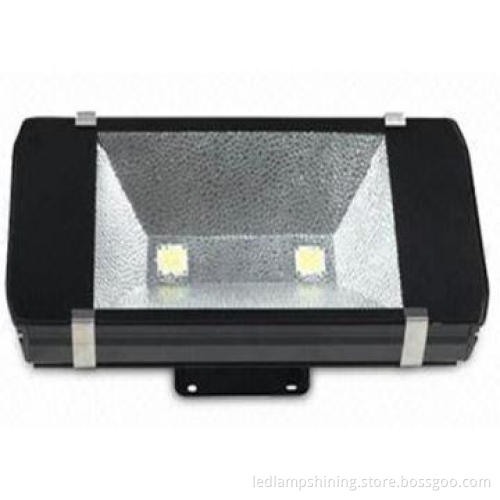

120W LED Tunnel Light

120W LED Tunnel Light - 16840Lm - COB Bridgelux 45Mil - Meanwell - 400W HPS replacement - the thickest aluminum housing

1.Light Source:4*30W Bridgelux
2.Luminous Flux:11440Lm
3.Rated Wattage:120W     PF>0.95
4.Base Options: wires
5.Input Voltage: 85~295VAC,50/60Hz
6.CRI > 78
7.THD < 9%
8.Color Temperature: 3000~3500K/4000~4500K/6000~6500K
9.Beam Angle:120 °
10.The Thickest Aluminum+reflector+meanwell
11.Lifetime: 50,000+ hours

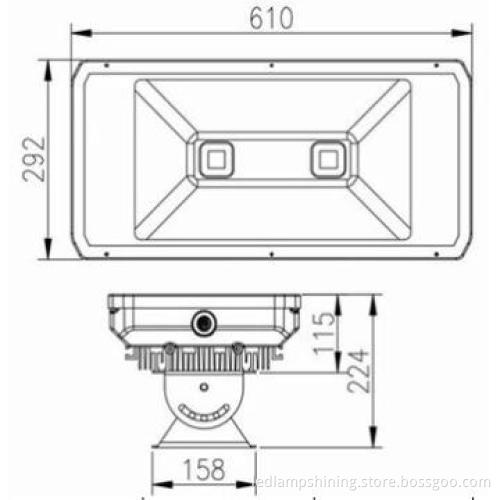

12.Size: 920mm*285mm*115mm
13.IP Rating:IP65(Dust and water proof)
14.Body Temperature:<55℃  @Ta=25 ℃
15.Isolated Meanwell power supply UL, TUV, FCC,SAA approved
16.CE,ROHS approved

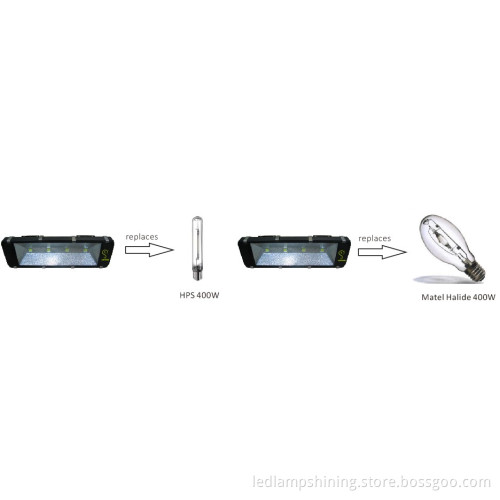

17.Replacement:350~400W  Matel Halide/HPS

120W LED tunnel light features

1.Internal Meanwell power for direct connection with 95~295VAC
2.Made with retrofit aluminum,steel screws,strong and durable.
3.Chips are High brightness Bridgelux which achieve over 100Lm/W
4.Owns better heat dissipation system by using the THICKEST extruded aluminum
5.No UV and near-IR radiation in the light beam
6.It has a wide light out beam angle 120degree
7.100degre adjustable back fixed U frame
8.High diffusing efficiency up 91%
9.This 120W LED tunnel light is prewired to 1.0m flex wires
10.IP65,ideal for  outdoor use
11.3 years warranty

   What should be awared of ?

1.Read the user`s manual in details, make sure the environment conditions fits the requests
2.Cut the power off before installation
3.Do not touch the exposed wires when it`s running on. Make sure wires are protected by insulating tape
4.Do not install this 120W LED Tunnel light in ambient where has high temperature over like 55 celsius degree or over corrosive gas
5.Indoor & outdoor use
6.Don't throw away casually


   Where to use ?

1.This 120W LED tunnel light is the best choice for park, parking lot,garden,building,high way,pathway lighting etc
