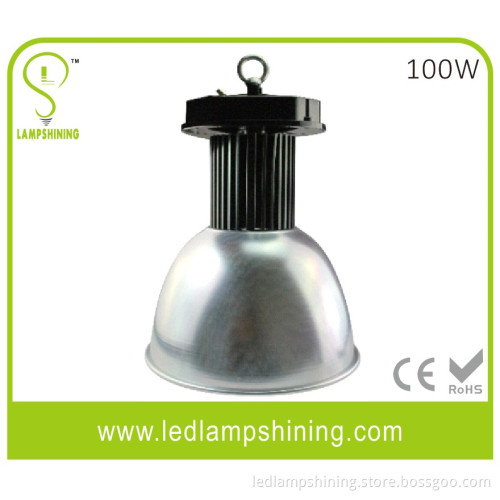

100W LED High Bay Light with meanwell driver

100W LED High Bay light Brdigelux - 9000Lm - meanwell driver - 300W HPS replacement - 5 years warranty

1. Light Source:1pc bridgelux/Epistar led
2. Luminous Flux:7000~8000Lm (Epistar)  8500~9000Lm (Bridgelux)
3. Rated Wattage:100W
4. PF>0.9
5. Base Options: US,Europe,UK standard plug
6. Input Voltage: 85~265VAC (regular driver)
                           85~295VAC,50/60Hz (Meanwell driver CLG-150)
7. Color Temperature:2800~3000K/4000~4500K/6000~6500K
8.  CRI > 80        IP Rating:IP65

9. Beam Angle:45°  &  90°  & 120 °
10. Lifetime: 50,000+ hours
11. Size:   ∮420mm* L 601mm (45°)
                ∮520mm* L 541mm (90°)
                ∮520mm* L 491mm (120°)
12. Body Temperature:<55℃  @Ta=25 ℃
13. Isolated power supply
14. Meanwell power supply is UL,TUV,CE certified(CLG-150)
15. CE,ROHS approved
16. Retrofit fin aluminum+stainless steel + tempered glass diffuser+Acrylic LENS
17. Replacement:300~350W Matel Halide

     LED High Bay Light Features

1. Using high power Bridgelux 110L/W chip
2. More beam angle options of reflector lets you choose the right use place.
3. Using a big round arcylic LENs,light comes out softly and focused
4. No extra light diffusing,just be focused on the ground. No black spot or blinking
5. Easy installation, adjustable stand and modules lets you point the light at different angles
6. Internal waterproof Meanwell Power spply which is UL & TUV & FCC & CE approved.
7. This 100W led high bay light Available running at 110VAC & 277VAC
8. IP65,ideal for indoor and even for outdoor use
9. Chips are high brightness Bridgelux
10. Longer working lifespan and steady function mthan changing only the origional bulb.
11. Environmental friendly and no air pollution.
12. 5 years warranty

     What should be awared of ?

1. Read the user`s manual in details,make sure the environment conditions fits the requests
2. Cut the power off before installation
3. Do not touch the exposed wires when it`s running on.Make sure wires are protected by insulating tape
4. Do not install this 100W led high bay light in ambient where has high temperature over like 55 celsius degree or over corrosive gas
5. Indoor & outdoor use
6. Don't throw away casually


     Where to use ?

1. This 100W led high bay light  is the best choice for factories, indoor stadium gas station, warehouse and city lighting projects.

Please contact sales office of Lamp Shining for IES files for lighting project simulation
