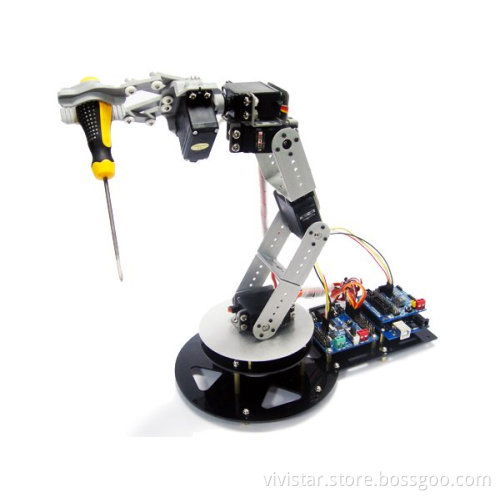

Arduino robot arm as-6 DOF aluminium clamp claw mount kit with servos and 32 road servos

Arduino robot arm as-6 DOF aluminium clamp claw mount kit with servos and 32 road servos controller

IntroductionThe robotic arm is automated mechanical device that is most extensive applied in the robot technology areas currently, you can see it in industrial manufacturing, medical treatment, entertainment services, the teaching application, military and space exploration areas. Although everybody often see it in movies or TV, and want to have one belong to oneself .But  the high price and pertinence make our buyers away. Now you don't have to worry about that question, AS - 6D0F aluminum robotic arm suite that can realize your robot dream.

The AS-6DOF robotic arm use 32 road servo controller and computer as control systems, joints can move in the prescribed scope, control software by operating  upper computer , sends control command signal to  servo controller, so as to realize the precisely work in the space, the performance feedback image can be seen by mounting camera on robot arm, if installed to the mobile platform, also can finish visual work replace workers in harmful environment, revise control instruction at current time ,accurately complete tasks, it is really a set of cost-effective and easy-to-use robot platform.

Arduino robot arm as-6 DOF aluminium clamp claw features:

Power supply voltage: 4.8 V-7.2V.
Current: 2-3A
Rotation angle of 180 degrees
Radius of gyration: 355mm
Height: 410mm
Clamp Max open is 55mm
Holder of the widest distance: 98mm

Arduino robot arm as-6 DOF aluminium clamp claw controller - 32 road servo controller:

This is the newly upgraded controller board.Up to 32 servo motors can be controlled at the same time, either by using a software on a PC, or UART communication ( TTL serial port) of MCU (51, AVR, ARM, FPGA, PIC, etc.) to send commands to control the steering. We can also download instructions to the servo motor controller for offline operation.Software (in English) is sent via email after purchase

32 road Servo Control Parameters:

1. Controlling MCU power supply: 6.5~12 V or 3.5~5.5V. (USB can be used to power the chip on servos board. And it can be chosen automatically. With the USB reverse protection, it can protect your computer from been hurted by the reverse USB.)
2. Servos power supply: DC (depends on the motors, generally 5V DC).
3. Control channels: 32. (can be controlled at the same time and the accuracy can be adjusted).
4. Communication Input: USB or UART (TTL or USART). (The Bluetooth or some other wireless module can be used to make the controlling).
5. Signal Output: PWM (Accuracy 1us).
6. Servo motor resolution: 1us, 0.09 degrees.
7. Baud Rate: 9600,19200,28400,57600,115200,128000(recognized automatically).
8. Servo motors supported: Futaba, Hitec or some other Servos Motor controlled by PWM.
9. Dimensions: 63.5mm x 43.5mm x 1.6mm.
10. Control mode: USB and UART (TTL) to accept command. (Comes with USB data wire and PC controlling software).
11. Flash memory: onboard 512K ROM (If every command is used to control the 32 motors at the same time, more than 500 commands can be saved.)

32 road servo control board features:

Powerful MCU
High controlling accuracy
Offline operation function
Identify baud rate automatically

Arduino robot arm as-6 DOF aluminium clamp claw package includes:

1x Arduino robot arm as-6 DOF aluminium clamp claw(with servos).
1x 32 road servo controller.
