HobbyWing Xerun-150A-SD ESC + 4274SD 1800kV Sensored Motor + Program Box

HobbyWing Xerun-150A-SD ESC + 4274SD 1800kV Sensored Motor + Program Box

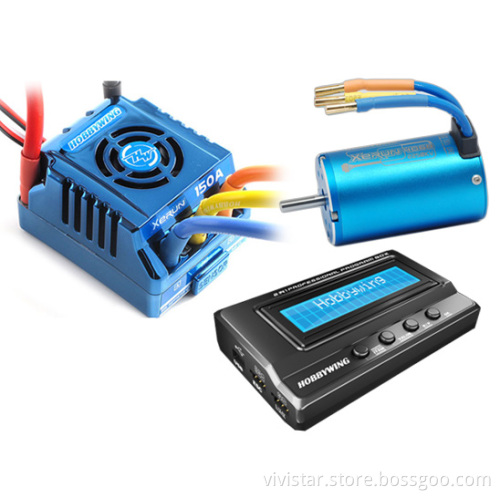

This combo includes Xerun-150A-SD ESC, 4274SD 1800kV Sensored Motor and Professional LCD Program Box

• Compatible with most of sensorless and sensored brushless motors such as Novak, LRP and Feigao, etc.
• Large current endurance.
• Excellent start-up, acceleration and linearity features.
• The built-in switching mode BEC has powerful output to supply all electronic equipments.
• Plenty of programmable items, suitable for various of chassis's, tires and racing tracks.
• Electric brake function, also compatible with mechanical disc-brake system.
• Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
• Internal timing can be changed easily to make the ESC suitable for various of motors.

• Easily programmed with the SET button, LED Program Box, Professional LCD Program Box and USB Link Software.
• ESC firmware can be updated through the USB adapter in the LCD Program Box .
• The major electronic components are sealed against splashing water and dust.
• These is a mounting stand for installing the ESC on chassis easily and firmly.


Program Box

• Working as an individual device to set the ESC, the value of each parameter is displayed on the LCD screen.
• Working as an USB adapter to link the ESC with a PC, user can update the firmware of the ESC or precisely set the ESC by HOBBYWING USB LINK SOFTWARE on PC


ESC

• Output: Continuous 150A, burst 950A
• Input: 6-18 cells NiMH/NiCd or 2-6S LiPo
• BEC: 5.75V/3A (Switch mode built-in BEC)
• Resistance: 0.0002 Ohm
• Motor Supported: Sensorless and sensored brushless motors
• Size: 58mm(L) * 46.5mm(W) * 35mm(H)
• Weight: 105g (Without wires)


Motor

• KV: 1800
• Dimension: 42mm
• Length: 74mm
• Shaft Dimension: 5mm
• Shaft Length: 18.5mm

• Resistance: 5.3m
• Weight: 371g
• IO: 2.3A@10V
• Max. Input V.: 26V
• Power: 1300W

Program Box

• Size:  91mm (L) * 54mm (W) * 18mm (H)
• Weight:  65g
• Input Voltage:  4.8-6V
• Display: 16*2 characters LCD.
• Interface: Mini USB interface, ESC interface (Futaba plug), Power supply interface (Futaba plug)


• Xerun-150A-SD ESC
• 4274SD 1800kV Sensored Motor

• Professional LCD Program Box
• Double-side gummy tape
• Screws for fixing the ESC
• Heat-shrink tubing
