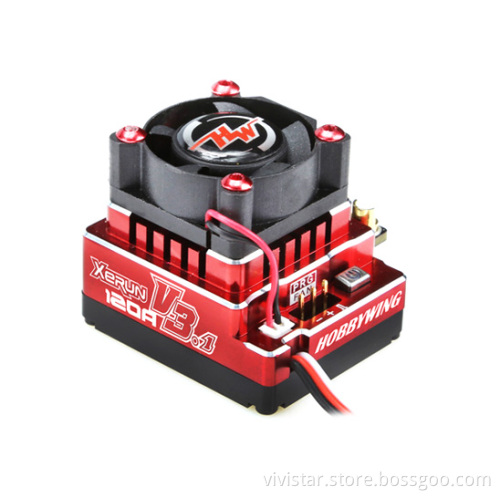

HobbyWing Xerun 120A Brushless ESC V3.1 Red

HobbyWing Xerun 120A Brushless ESC V3.1 Red

• Aluminium lower case for better heat dissipation
• Updated heatsink design for better airflow and cooling as well as silicone-sealed sensor
• Fan connectors for dust protection
• ESC firmware can be updated through the USB adapter in the LCD Program Box
• Up to ten profiles can be stored in the memory and imported or exported easily. Factory pre-set profiles include: Blinky mode, Modify Mode, Stock mode, Practice mode, Offroad mode, Drift mode, Crawler mode
• Built-in Electronic Switch, long life and high reliability, also saves space on the chassis
• External Programming Port (EPP), easy to connect and also a power port for additional fan
• Advanced Dynamic Timing technology, providing more customization possibilities for highest level competitions
• Precise throttle and brake control, setting of drag brake and brake strength with more options, new punch and brake rate control functions, and throttle and brake curves through the PC client
• Integrated Data logger, recording the maximum temperature of ESC and motor as well as the maximum RPM, using LCD Programming box to check easily in the pits
• Multi Protection Functions, making your running safe with ESC and Motor overheat protection, low voltage cutoff and throttle signal loss protection
• Multi Protection Functions, making your running safe with ESC and Motor overheat protection, low voltage cutoff and throttle signal loss protection
• New USB LINK Software graphic interface, providing extra parameters for advanced settings
  (Note: XERUN V3 ESC ONLY works with the new version of the USB Link Software, that is, the version not ealier than V3.0_Beta_120401)

• Current: Continuous - 120A; Burst: 760A
• Input: 4-9cells NiMH/NiCd, 2-3S LiPo
• Built-in BEC: 6V @3A  (linear model)
• Resistance: 0.0003Ohm
• Motor Supported: Sensored and sensorless brushless motor
• Suitable Motor:
  (With 2 Lipo or 4-6 NiMH)
  1/10 on-road: >=3.5T
  1/10 off-road: >=5.5T
  (With 3 Lipo or 7-9 NiMH)
  1/10 on-road: >=5.5T
  1/10 off-road: >=8.5T
• Suitable Car: 1/10, 1/12 all competitions
                        1/10, 1/8 rock crawler
• Cooling Fan: 5V
• Size: 37.5mm(L) x 31mm(W) x 29.5mm(H) (excludes wire connectors)
           37.5mm(L) x 37mm(W) x 29.5mm(H) (includes wire connectors)
