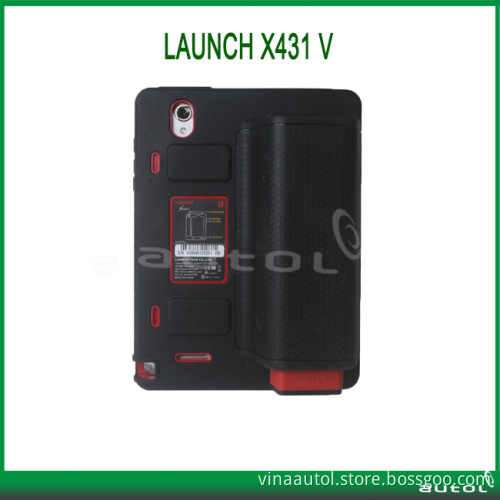

Newest Original LAUNCH X431 V-series Automotive Fault Diagnostic Equipment for
Android Launch X431 V(X431 Pro)
Launch X431 V Wifi/Bluetooth Tablet Full System
Diagnostic Tool
Highlights:
1. Supported Languages: English,
German, French, Italian, Spanish, Portuguese, Polish,
Russian, Japanese, Traditional Chinese
2. Wi-Fi: Supported
3.
Bluetooth: Supported
4.
Dealer Code: 86A
5.
Easy to Update: Online update, Support Online one-click update, no need to
update the software to CF Card.
Description:
Launch X431 V (X431 Pro) with Bluetooth/Wifi based on
Android system, is a new car malfunction diagnostic device developed by Launch
Tech for internet application. X-431 V completely substitutes X431 IV and X431
Diagun III. It passes on Launch advantages in car fault diagnostic technology,
such as vast car model coverage, powerful test function, special function and
accurate tast data, etc., X-431 V achieves the full car model and full system
fault diagnosis through the bluetoooth communication between DBSCar connector
and intelligent mobile terminal. X-431 V taking the advantage of mobile
internet, can share maintenance data and case library, provide instant
maintenance information, and build public and private maintenance social
circle,etc.,thus lead to wide car diagnostic community.
It is a typical diagnostic device contributed by Launch
to diagnostic industry concerning internet application.
X431 V Product Features:
Panel PC: High configuration of hardware , fast running
speed
Capacitor Screen: Multi-touch capacitor screen, more
smooth operation
WIFI Diagnosis: Wireless communication between
intelligent mobile terminal and DBSCar connector via Bluetooth
Portable: Reasonable PDA design, small size for easy
carry
Optimized Interface: Brand new operation interface
design, interface more friendly and operation much easier
Wifi communication: Support WIFI network
Android System: Users can install and Android
software
Numerous Additional Functions: Photo, video, multimedia,
other software application,etc.
One click update: You do not have to download software
to memory card anymore, can do one click update directly through your
machine.
X431 V Original Supported Car
Models:
Acura, Changan, Daweoo, Gaz, Hafei, Huachen, Jiao,
Lexus, Xiali, Xinkai, Benz, Fiat, Holden, Maruti, Opel, Peugeot, Saab,
Ssangyong, Tata, Changhe, Flyer, GMSA, Infiniti, Mahindra, Perodua, Proton,
Qirui, Tlisuzu, Zhongshun, EOBD2, Euroford, GM, Jagar, Renault, Smart, Sprinter,
USA Ford, VAZ, VW, Changcheng, Dacia, Ford, HaoQing, Jinlong, Liuwei, Rover,
ZhongTai, ZhongXing, Bxfiat, HM, Isuzu, Jacty, JPIsuzu, Mazda, Seat, Skoda,
Suzuki, BMW, Daihatsu, Mitsubishi, Porsch, Toyota, Volvo, Audi, Chrysler,
Citroen, Hyundai, Kia, Lancia, Landrover, Nissan, Romeo and Subaru.
Pannel PC Parameters:
Operating System: Android
CPU: Dual core 1GHz
Battery: 3000mh, rechargeable polymer lithium
battery
Standby time: it is subject to the using environment.
Generally it can keep working for 4 hours.
Extension memory card: 32G Micro SD(TF) card
supported
Memory: 512MB
Storage capacity: 2GB
LCD: 7.0 inch
LCD resolution: 1024X600
Touch screen: 5 points capacitive touch
screen
Cameras: 2 mega rear and 0.3 mega front
Working temperature: -10°C ~ 55°C (14°F to
131°F)
Storage temperature: -20°C ~ 70°C (-4°F to
158°F)
DBSCar Connector
Parameters:
Working Voltage: 9 ~15V
Average working current: about 35mA
Standby current: about 25mA
Working temperature: -20 to 55°C (-4°F to
131°F)
Storage temperature: -30 to 70°C (-22°F to
158°F)
Storage humidity: <80%
Working humidity: <60%
Net weight: about 26g
Bluetooth Distance: 10M (without obstacle)
What is Difference Between X431 V and X431
IV?
Operation System:
X431 IV: LINUX
X431 V: Android
Screen
X431 IV: LCD Touch with backlight, 240*320
X431 V: 7 inch Capacitive Touch
Processor:
X431 IV: 72MHz 32-bit ARM7
X431 V: 1GHz Dual Core
Memory:
X431 IV: 16M
X431 V: 512M
Storage:
X431 IV: 1GB CF Card
X431 V: 2GB, extendible to 32G
Battery
X431 IV: No
X431 V: 3000mAh, Endurance: 4h
Printer:
X431 IV: Thermal Printer
X431 V: NO
Diagnostic Method:
X431 IV: Test Cable
X431 V: Bluetooth/WIFI
Diagnosis
X431 IV: Wired diagnosis, independently diagnose full
system and analysis & display through smart terminal.
X431 V: Bluetooth diagnosis, independently diagnose full
system and analysis & display through smart terminal
Diesel Vehicle
X431 IV: Yes, 12V
X431 V: NO
Upgrade method
X431 IV: Download to CF Card
X431 V: Online one-click upgrade
Multi Group Display
X431 IV: 2
X431 V: 4,6,12
Camera:
X431 IV: NO
X431 V: Front: 0.2 megapixel, Rear: 2.0
megapixel
Startup Time:
X431 IV: 35s
X431 V: 25s
Picture/Audio/Video/Instant
Chat
X431 IV: NO
X431 V: YES
