motorcycle/motorbicycle battery charge/discharge tester

Simulation working condition of electric motorcycle and electric bicycle battery test system.

Popular models/Size:60V20A, 60V40A, 60V60A, 60V100A.60V200A, 70V300A, 110V100A, 110V180A

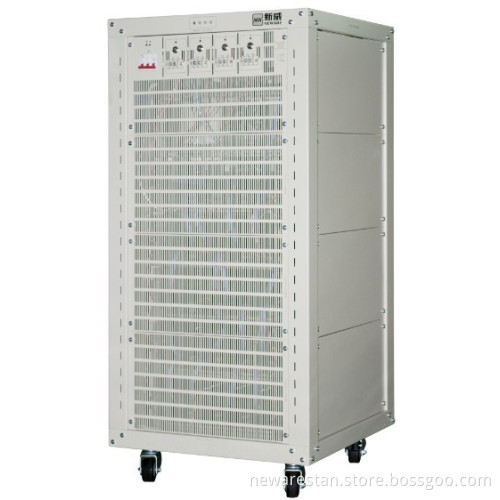

***BTS-60V20A***
BTS-3000 is based on Neware third-generation testing system, which is mainly for battery formation, capacity,cycle life and charge/discharge test,it's now the most popular type in the EV battery testing field, and it serves for research institutes, colleges and universities and EV manufacturers all around the word.

Specifications:
*Input power: AC 110V/220V/380V ±10% 50HZ/60HZ;
*Output range(customizable):Voltage 0-110V;
*Resolution: AD:16bit; DA:12bit;
*Control accuracy: ±0.1% of FS
*Measuring accuracy: ±0.1% of FS
*Rise Time: ≤20ms (10%-90%)
*Data recording rate: 1HZ (Max), one data point per second ,Support.(ΔTime/ΔU/Δl)
*Operating modes: charge: Constant Current, Constant Voltage,Constant Current & Constant Voltage
                  Discharge: Constant Current, Constant Power,Constant Resistance

Application:
*Testing objects: EV Battery,Battery Cell,Battery Module,Battery Pack,Power-Storing battery,Super Capacitor;
*What can it test: power,energy,capacity,over-charging,over-discharging,cycle life;
*Grading function: test and estimate the consistency of batteries' quality;
*Cycle life test: for cell and module;
*Set rate test: set charge and discharge rate for rate test.

Others:
Main Markets/Key Customers : India,European,Asia,USA,worldwide;
Delivery Terms : FOB
Delivery Lead Times : 30 Days
Payment Terms : T/T;
Min Quantity : 1
Quality Process Certifications : MC, ISO certification and European CE safety certification
