EV battery/power storage testing system

IGBT EV/HEV/PHEV battery test equipment.

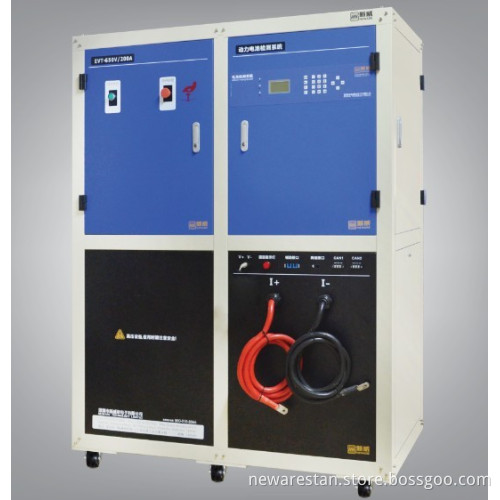

***EVTS-500V300A***
EVTS-500V300A is mainly developed for big battery pack. As a new-generation power battery tester with high voltage
and current, having power components and control methods different from the traditional ones, EVTS-500V300A is the ideal solution to power batteries and power-storing batteries.

Popular models/Size:
*EVTS-500V100A: 1350*733*1800(mm)
*EVTS-500V300A: 1350*733*1800
*EVTS-600V500A: 1350*733*1800
*EVTS-600V700A: 2000*1000*2120
*EVTS-700V100A: 1350*733*1800
*EVTS-750V300A: 1500*900*1800
*EVTS-800V600A: 2000*1000*2120
*EVTS-800V1000A: 2300*1400*2300

Specifications:
*Input power: AC 380V ± 10% 50HZ/60HZ
*Output range(Customizable): Voltage 100-800V
*Resolution: AD: 16bit; DA: 12bit
*Control accuracy: ±0.1% of FS
*Measuring accuracy: ±0.1% of FS
*Discharging energy: can be returned back to the electricity grid
*Rise Time: ≤1s (10%-90%)
*Data recording rate: 1HZ.10HZ(customizable) (Max), 1 or 10data point per second,Support.(ΔTime/ΔU/Δl) as recording conditions
*Operating modes: Charge: Constant Current, Constant Voltage, constant current & constant voltage
                  Discharge: Constant Current, Constant Power

Aux channel test(For single cells`voltage and temperature):
*temperature range: thermal resistance: -10℃-85℃
                    thermocouple: -80℃-200℃
*temperature accuracy:±2℃
*voltage range:10mV-5V
*voltage accuracy:±0.1% of FS

Application:
*Can test: voltage,current,capacity,energy output capability;
*Test the battery parameters: cycle life, over-charging, over-discharging;
*Grading function: test and estimate the consistency of single cells in each battery pack;
*CAN bus communication port: support communication with BMU/BMS;
*Set rate test: set charge and discharge rate.
