Al PCB for Security and Protection System,Aluminum Bases/Substrate

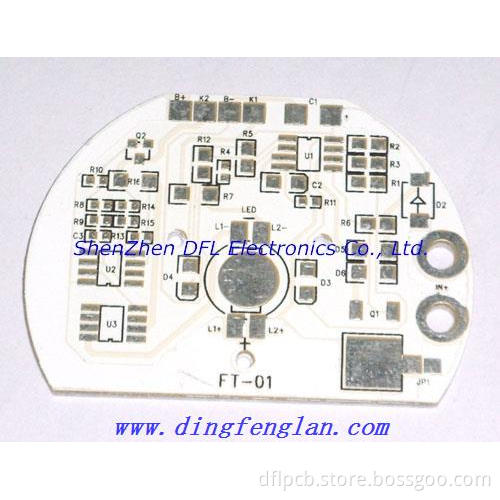

Single Layer Security and Protection System Aluminum PCB:

Layer count: Single layer
Base material: 1.5mm Aluminum
Finished copper weight: 1oz
Surface finishing: HASL Lead free
Solder mask: White
Board size:Customized according to the supplied gerber file

Aluminum base copper-clad laminate have excellent flame retardant, high mechanical strength, dimensional stability etc. Especially it has very good heat sink, electromagnetic shielding and solder float.

Note: We specially produces Metal Base Copper-Clad Laminates, and our products have been compiled series with all complete specifications.
The tapy and specification of Aluminum based Laminates CCAF-01, CCAF-04-A, CCAF-05etc. And 0.8mm, 1.0mm, 1.5mm, 2.0mm, etc.
Thickness of the copper: 18um, 35um, 70um, 105um
Base size: 500mm x 600mm (20"x24"); 600mm x 1200mm
The test base: CCAF-01 the high heat dissipation
Thickness of the copper: 35um
Thickness of the diclectric: 70um
Thickness of the aluminum-base: 1.5mm

Our Superiority

1.High efficiency & Experience
We can provide one stop service.we have grown up into a professional PCB manufacturer. We have our own independent research and development department and sophisticated quality control system.
********************
2.Protecting your interestsProtecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.
********************
3.Quality
Our products are manufactured according to the UL/Rohs standards to insure quality assemblies from start to finish. Whether it's a simple custom or not.Product or a complex turnkey production run, We will adhere to the highest quality standards.
********************
4.Service
We can provide 24hours service for you. We pride ourselves on our ability to custom tailor programs around our customers' needs.We take time to listen to your unique business needs and then set out to surpass them.
