Fiber Laser Marking Machine
  • Fiber Laser Marking Machine
  • Fiber Laser Marking Machine
  • Fiber Laser Marking Machine
Fiber Laser Marking Machine
Fiber Laser Marking Machine
Fiber Laser Marking Machine

Fiber Laser Marking Machine

Min. Order:
1
Min. Order:
1
Delivery Time:
10 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen
Supply Ability: 100
Certificate: CE ISO CQC
Product Description
Product Description

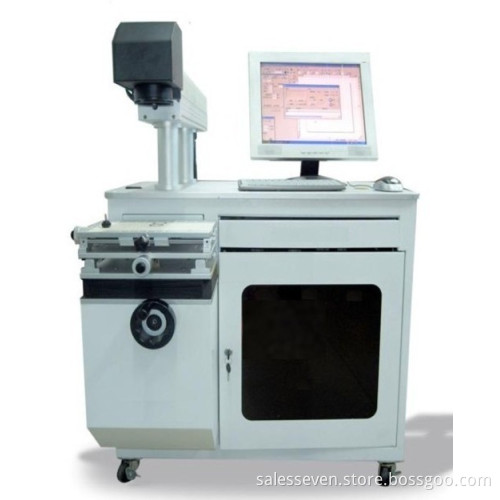

DM-W10 Fiber-optic laser marker, very Flexible,, which is easily integrate into industrial production processing. it can operate laser directly by controling interface (USB) , no supplies, and products' depreciation costs are greatly reduced. By comparison,it has performances including high efficiency, long life and maintenance-free and so no,but the traditional laser does not.
Advantages: 1, high-definition: the resolution is measured by micron; It is two times clearer that traditional machine.
2, Less power consumption: occapy traditional consumption of one and two-fifths to one and ten.
3, high-speed:the speed is three to five times faster than traditional machine.
4, stability: the stability of machine is much better than similar counterpart.
5, long life:its lifespan is ten times longer than traditional machine.

Parameters Name                                   Parameters Datas
Average laser output power                  10W(Continuum or Pulse)
Laser wavelength                                1064nm
Power adjustment range                      10-100%
Repetition frequency                            20-100KHz
Output beam quality                            <1.5M²
Marking Linear deep                            ≤1.2mm
Min. Highlight spot                              0.005mm
Min. character size high                      0.15mm
Repetition accuracy                            ±0.001mm
Max. Linear marking speed                 12000mm/s
Marking format                                   Graphics, character, bar code, two-dimensional code, date, serial number
Software                                             WINXP + support file formats of PLT, PCX, DXF, BMP etc; SHX and TTF fonts.
Standard marking area                        100mm×100mm
Marking area option                             50mm×50mm  150mm×150mm  200mm×200mm
Power consumed                                ≤160W
Electrical demand                               220V±10%/50Hz/4A
Cooling Mode                                     Air-cooled
Control interface                                 USB
Laser module life                                >10000 hours
Laser                                                 IPG
Resonance mirror                               high speed
Usage environment                             Clean, no shaking
