Triply Play FTTH ONU EPON/GEPON ONU

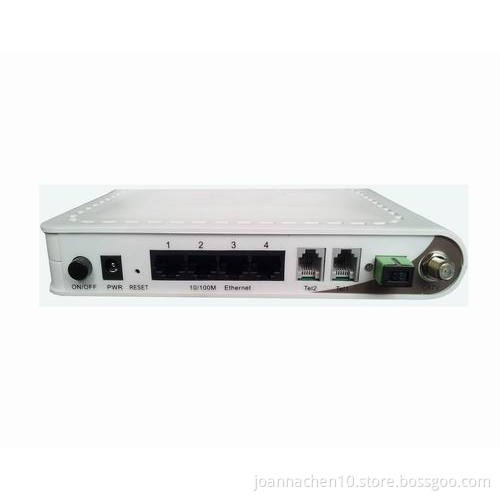

FTTH ONU FD404H (4FE+2POTS+RF) is a FTTH bandwidth access equipment ,widely applied in the[ three into one [ solution (integrated with Ethernet ,VOIP and CATV) .Based on mature and stable GEPON technology, it has powerful functions with high stability ,sound QoS guarantee ,comprehensive management and flexible networking construction, etc .FTTH ONU FD404H`s technology standard fully complies with ITU-T,IEEE,YDT and telecommunication technology standard.
It could be used with C-Data local equipment OLT FD2000S to construct EPON system .It could provide three service access ,meeting the end users` demands for surfing ,telephone and video entertainment .
Functional Features
- Comply with IEEE802.3ah(EPON),China Telecom EPON technology standard V2.1
- Support IEEE802.3AH OAM function
- Maximum distance:20km;Maximum splitting Ratio:1:64(10km)
- Support various service ,such as Data ,Voip and IPTV
- Support Dynamic Bandwidth Allocation technology
CATV (RF) technical feature
- Working wavelength: 1550+/-10nm
- Optical Reflection Loss:>45dB
- RF frequency range:54MHz~870MHz
Typical Application
FTTH access based on EPON
Order Information
| Model | Speciation |
| FD404H | 4*10/100M Ethernet ports ,2 POTS ports ,1 CATV RF port,1 PON port ,external power supply |
