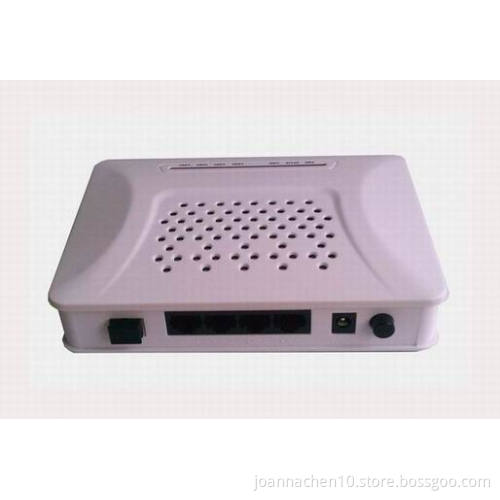

4FE Optical Fiber FTTH EPON ONU,FTTH GEPON ONU

4FE Optical Fiber EPON ONU/GEPON FTTH ONU

EPON FTTH ONU FD104H support 1000Base-PX10/PX20 standard with 1:64 maximum optical splitting ratio and 10/20km distance, and provide 1uplink GE PON port. ONU FD1xxx  together with C-Data's OLT FD2000S could guarantee stable QOS ,flexible bandwidth allocation and highly cost-effective IP integrated access solution.

FTTH ONU FD104H has 1 optic PON port ,4* 10/100Mbps auto-negotiation ethernet ports ,suitable for FTTB+LAN or FTTH networking access.

 Functional Feature

• Support port-based rate limitation and bandwidth control;
• In compliant with IEEE802.3ah Standard
• Up to 20KM transmission Distance
• Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
• Support Dynamic Bandwidth Allocation (DBA)
• Support ONU auto-discovery/Link detection/remote upgrade of software;
• Support VLAN division and user separation to avoid broadcast storm;
• Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different LLID channels.
• Support power-off alarm function ,easy for link problem detection
• Support broadcasting storm resistance function
• Support port isolation between different ports
• Support ACL and SNMP to configure data packet filter flexibly
• Specialized design for system breakdown prevention to maintain stable system
• Support software online upgrading
• EMS network management based on SNMP ,convenient for maintenance

Typical Application

• Bandwidth Access based on EPON+EOC solution
• Bandwidth Access based on EPON+LAN solution
• Bandwidth Access based on FTTB solution
• Bandwidth Access based on FTTH solution
