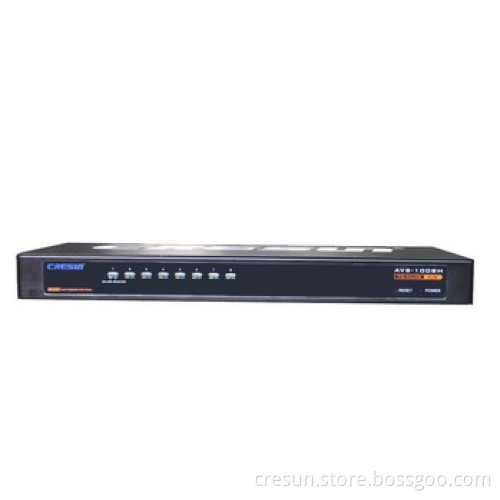

USB KVM Switch
  • USB KVM Switch
USB KVM Switch

USB KVM Switch

Min. Order:
10
Min. Order:
10
Delivery Time:
15 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: china
Supply Ability: 1000
Certificate: FCC,CCC,CE
Product Description
Product Description

USB KVM Switch

·USB KVM Switch only make cables connect to the computer directly.

·Compatible with USB1.1, support UHCI and OHCI.
·Compatible with all major brands of existing servers and software.
·Support a variety of operating systems, to deal with a variety of platforms PC, MAC G3/G4,iMAC by a set of the USB keyboard(or PS/2 keyboard),USB mouse(or PS/2 mouse), and a display.
·You can make maintenance online without shutting down the computers.
·USB KVM Switch can record and restore the keyboard status(Caps Lock,Num Lock,Scroll Lock)in the process of switching the computer .
·Using the isolation technology and simulation technology on the name, to avoid the crosstalk between keyboard and mouse.
·Support all computers to boot at the same time and hot-swappable.
·Rackmount (Height: 1U, 19"standard ),Support multimedia USB keyboard(PC, Mac and Sun).
·Does not need to install any additional software.
·USB KVM Switch supports USB self-powered. Alarm sound means that the switch is successful.
Specifications:

Model

AVS-1004H

AVS-1008H

AVS-1016H

computer connection (Direct)

4

8

16

computer connection (Max)

128

256

512

connection port

control port:Display,Keyboard,Mouse PC port:PS/2 USB

OSD switch

Support

Switch mode

Hotkey,OSD menu

Switch scan time

1~255 Sec.(adjustable by OSD )

Pre-electronic key

to select the appropriate server through electronic keys

Input

AC 100V-240V 47-63Hz Power:1W

Cabinet Material

High strength and anti-corrosive rigid plate

Color

Insulated black paint (other colors are optional)

Dimension

155mm482.5mm*44mm

Gross Weight

4.65Kg

6.5KG

8.45KG

For cabinet

big or small cabinet

Storage temperature

Below zero 30°C~65°C

Work temperature

Below zero 10°C~60°C

Humidity

5%~90% RH

Safety certification

CCCFCC CE

Packing list:
PortKVM switch 1pcs
User` manual 1pcs
DC/AC power converter 1pcs
Installation tools 1 group
Cascading cable 1 group

Ordering information:
AVS-1004H DV 9V 1A / 4port switch
AVS-1008H DV 9V 1A / 8port switch
AVS-1016H DV 9V 1A / 16port switch

We also produce IP KVM Switch, PS / 2 KVM Switch, CAT5 KVM Switch and LCD KVM Switch. The more relevant the KVM Switch information, welcome to inquiry
