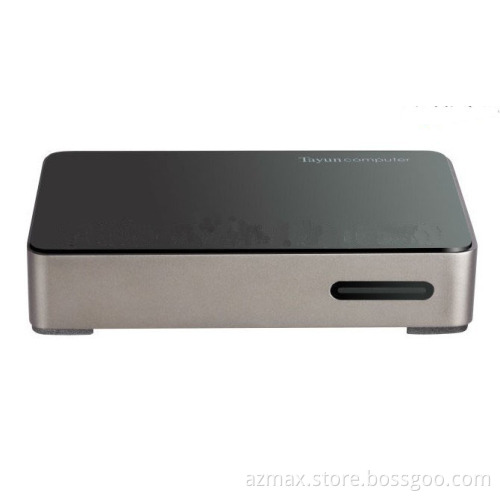

Set Top Box Kenya DVB T2 Receiver
- Min. Order:
- 200
- Min. Order:
- 200
- Delivery Time:
- 2 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 20000 |
Specifications
1, DVB T2 receiver..2,Support AV,Coaxial,HDMI .
3,USB PVR.
4,set top box dvb t2.
H.264 MPEG4 Set Top Box Kenya DVB T2 Receiver
Specifications
1. DVB-T2 set top box
2. Support AV,Coaxial,HDMI
3. USB PVR,7days EPG
4. MPEG4, H.264 supported
5. Timeshift function.
Main
Feature
* Solution: MSD7816
* Fully supports DVB-T2/T, HD MPEG2,
MPEG4,HD H.264,1080i,1080p
* HDMI for multimedia play, standard and high
definition output for DVB-T
* Auto and manually scan all available TV and
radio channels
* Aspect ratio 16:9 and 4:3
* HDMI1.3 output
*
Multi-language OSD & Subtitles
* Powerful and highly effective 7-day EPG
function
* Supports teletext
* Parental lock
* PVR ready function via
USB 2.0,Timeshift function
* Multimedia playback via USB 2.0
* Stores up
to 1,000 programs and keeps in memory while power-off.
Tuner:
*
NMI120
* RF input frequency: VHF: 174MHz - 230MHz/UHF: 474MHz - 860MHz
*
Bandwith: 6/7/8MHz
* Input level: -83dBm
* Signal input: IEC-type
female.
Decoding:
*
MPEG transport stream and A/V decoding
* Video standard: MPEG-4 AVC/H.264
HP@L4
* Aspect ratio: 4:3, 16:9
* Video resolution: 576i, 576p, 720p,1080i
and 1080p
* Audio standard: ISO/IEC 14.496-3
* Audio mode: mono,
dual-channel, stereo
* Powerful Multimedia Features
* Photo: JPEG, BMP, PNG
* Audio: WMA, MP3, AAC (.wma, .mp3, m4a)
*
Video: MPEG1, MPEG2, MPEG4, H264
* Motion JPEG
(.avi,.mpg,.dat,.vob,.div,.mov,.mkv,.mjpeg,.ts,.trp)
* NTFS, FAT32,
FAT16
* JPEG/Audio combo playback.
Hardware
Interface:
* Indicators: Power, signal lock
*
IR Receiver: 38KHz
* USB2.0
* LED display
* HDMI 1.3
* Loop through
output: IEC-type, connector, single tuner
* Coaxial output
* YPbPr/YUV
output
* RCAx3 A/V output
* Scart output (optional)
* Power input
Spec.: 1100 - 240V AC / 8W max .
Dimension:
* Product Size: 220*40 mm
* Gift box size: 255*215*65mm
* Carton size: 350*270*450mm
* 1pc/ gift box; 10pcs/ ctn
* N.W.: 8.1KG; G.W.: 9KG
* Loading in 20/40GP/40HQ: 6700pcs/13500pcs/16000pcs .
More Details of DVB T2
| Main Feature | Powerful Multimedia Features |
| * Fully supports DVB-T2/T, HD MPEG2, MPEG4,HD H.264,1080i,1080p | * Photo: JPEG, BMP, PNG |
| * HDMI for multimedia play, standard and high definition output for DVB-T | * Audio: WMA, MP3, AAC (.wma, .mp3, m4a) |
| * Auto and manually scan all available TV and radio channels | * Video: MPEG1, MPEG2, MPEG4, H264 |
| * Aspect ratio 16:9 and 4:3 | * Motion JPEG (.avi,.mpg,.dat,.vob,.div,.mov,.mkv,.mjpeg,.ts,.trp) |
| * HDMI1.3 output | * NTFS, FAT32, FAT16 |
| * Multi-language OSD & Subtitles | * JPEG/Audio combo playback |
| * Powerful and highly effective 7-day EPG function | |
| * Supports teletext | Demodulation: |
| * Parental lock | * Terrisal Receiver Standard: DVB-T2/T (EN 302755/EN 300744) |
| * PVR ready function via USB 2.0,Timeshift function | * QPSK, 16QAM, 64QAM,256QAM |
| * Multimedia playback via USB 2.0 | * FEC: 1/2, 2/3, 3/4, 4/5,5/6, |
| * Stores up to 1,000 programs and keeps in memory while power-off | * Guard Interval: 1/4,1/8,1/16,1/32,1/128 |
| * FFT Mode: 2K, 8K, 32K | |
| Tuner | Demultiplexer |
| * NMI120 | * Standard ISO/IEC 13818-1; ARIB STB-B10 |
| * RF input frequency: VHF: 174MHz - 230MHz/UHF: 474MHz - 860MHz | * Input max. bit stream rate: 120Mbps (serial)/15MBps (parallel) |
| * Bandwith: 6/7/8MHz | Hardware Interface |
| * Input level: -83dBm | * Indicators: Power, signal lock |
| * Signal input: IEC-type female | * IR Receiver: 38KHz |
| * USB2.0 | |
| Decoding | * LED display |
| * MPEG transport stream and A/V decoding | * HDMI 1.3 |
| * Video standard: MPEG-4 AVC/H.264 HP@L4 | * Loop through output: IEC-type, connector, single tuner |
| * Aspect ratio: 4:3, 16:9 | * Coaxial output |
| * Video resolution: 576i, 576p, 720p,1080i and 1080p | * YPbPr/YUV output |
| * Audio standard: ISO/IEC 14.496-3 | * RCAx3 A/V output |
| * Audio mode: mono, dual-channel, stereo | * Scart output (optional) |
| * Power input Spec.: 110 to 240V AC / 8W max | |
| Packing | Accessories |
| Product Size: 260*38 mm | * AV cable |
| * Gift box size: 275*225*68mm | * User Manual |
| * Carton size: 365*290*530 | * Remote control |
| * 1pc/ gift box; 10pcs/ ctn | * Warranty card |
| * N.W.: 10.96KG; G.W.: 11.66KG | |
| * Loading in 20/40GP/40HQ: 5000pcs/10200pcs/12000pcs |
