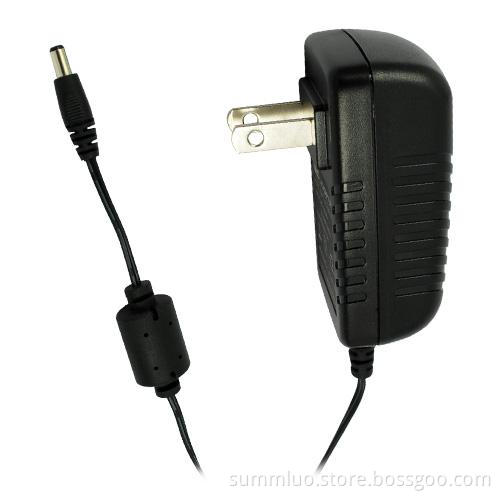

12v 150ma adapter

Get Latest Price

Min. Order:: 100

Min. Order:: 100

Delivery Time:: 7 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

12v 150ma adapter

1.Features:

Input:AC 110-240V 50/60HZ
Output:DC 12v 150ma
US,EU, AU,UK plug
DC tips: you customize
Output DC wire:1.2M
Ripple noise:200mv
Line regulation:+-5%
load regulation:+-5%

2.Technical specification:

Input voltage

Rated Voltage: 100~240Vac

Variation Range: 80V~280Vac

Input Frequency

Rated Frequency: 50/60HZ

Variation Frequency: 47~63Hz

Input current

0.5Amax. at any input voltage and rated, DC output rated load.

Inrush Current

30Amax. @ 264Vac input

Efficiency:

80% min at 100Vac input and output rated .Load.

Turn on delay time:

80% min at 100Vac input and output rated .Load.

3S max. @ 100 Vac to 240 Vac input & Full load

Rise time

20mS max. @ Rated load

Hold up time:

5mS min. @ Full load &230Vac/50Hz input turn off at worst case

Short circuit protection:

The power supply will be auto recovered when short circuit faults remove.

Over current Protection:

The power supply will be auto recovered when over current faults remove

Over Voltage Protection:

The power supply will auto recovered when faults remove 120%~150%.

Environmental requirement:

Operating Temperature: 0~40°C ,full load , normal operation.

Storage Temperature: -20~80°C with package

Relative Humidity: 10%(0°C) ~90%(40°C) RH

3.Application :

Semiconductor refrigerator.Mini refrigeration equipment.Small home appliances.Tablet pc .Mobile phone . Game player . Musical instruments. Any Protable Device or Machine.

Tablet PC android 3 0, grinder, digital photo frame, Portable HDD Enclosure, HDD Player, portable DVD, Small and medium sized LED players, Other security products, etc.

4.Warranty:

1. We provide 1 year warranty.

2. Normal Production according to the sample that confirmed by customers or customer's instruction. So please do give us right and confirmed instruction as well as check the sample carefully before you confirm.

3. Should you need any assistance with product problems please feel free to contact us.You will receive a prompt reply from us

5.Remarks:

1. delivery time:7 days (if quantity more than 4000Pcs,it will subject to our final

confirmation)

2. Payment: TT or western Union
