High-speed needle loom; knitting, weaving machines
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|
Product Description
Product Description
Description:

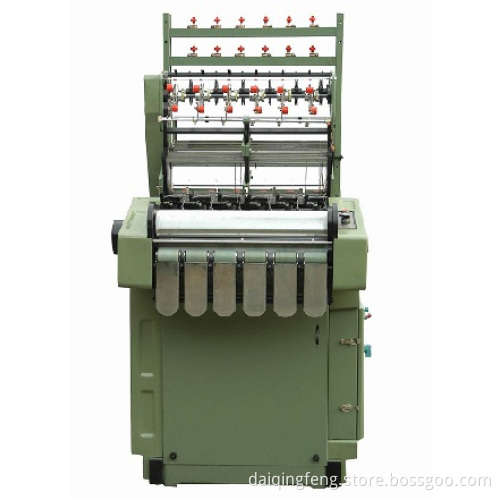

1). Product Name: High Speed Narrow Fabric Needle loom / Blet Making Machine / Tapes weaving machine / Shuttleless needle loom
2). Function: For producing various kinds of tapes, elastic or rigid, light or moderate duty tapes with a variety of filament materials.
3). Features and Specs:
- Weaving head: 2 to 12;
- Width: from the smallest width to the maximum width of 160mm;
- Thickness: from gauze tape to heavy duty tape;
- Heald frame: 12 to 16;
- Weft density: 3.5 ~ 36.7 / cm (8.9 ~ 93 / inch);
- Pattern chain cycle: 8~48;
- Motor Power: 2 HP, Invertor controlled;
- Reliable and efficient after-sales service;
- Free-charge technical training;
| Model | QYF 4/55 |
QYF 4/65 |
QYF 6/45 |
QYF 6/55 |
QYF 8/30 |
QYF 10/25 |
QYF 10/28 |
QYF 2/110 |
QYF 2/165 |
| Weaving Head | 4 | 4 | 6 | 6 | 8 | 10 | 10 | 2 | 2 |
| Reed Width | 55 | 65 | 45 | 55 | 30 | 25 | 28 | 110 | 165 |
| Number of Frame | 12 | ||||||||
| Weft Density | 3.5~36.7 /cm | ||||||||
| Pattern Chain Cycle | 8~48 | ||||||||
