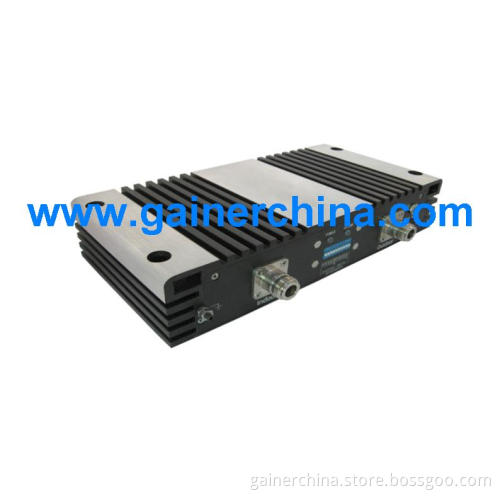

15dBm Single band Signal Repeater
  • 15dBm Single band Signal Repeater
  • 15dBm Single band Signal Repeater
15dBm Single band Signal Repeater
15dBm Single band Signal Repeater

15dBm Single band Signal Repeater

Payment Type:
T/T, Western Union
Incoterm:
FOB
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Delivery Time:
25 Days
Transportation:
Ocean, Air
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Payment Type: T/T,Western Union
Incoterm: FOB
Certificate: CE
Transportation: Ocean,Air
Product Description
Product Description
Features:

1. Elegant and Compact design
2. Built-in AGC and ALC circuits, which can automatically control the gain of the repeater depending upon the strength of input signals.
3. 30dB MGC(Manual gain control) 1dB one step available for both uplink and downlink to adjust the gain value for proper coverage during installation or maintenance.
4. Auto shut off function available for both uplink and downlink to avoid deep self-oscillations from jamming the towers, saving your trouble from operators.

5. Low power consumption - 6W only.

Electrical specification Uplink Downlink
Frequency Range CDMA800 824 ~ 849 MHz 869 ~ 894 MHz
CDMA1900 1850 ~ 1910 MHz 1930 ~ 1990 MHz
GSM850 824 ~ 849 MHz 869 ~ 894 MHz
EGSM&GSM 880 ~ 915 MHz 925 ~ 960 MHz
DCS 1710 ~ 1785 MHz 1805 ~ 1880 MHz
PCS 1850 ~ 1910 MHz 1930 ~ 1990 MHz
WCDMA 1920 ~ 1980 MHz 2110 ~ 2170 MHz
AWS 1710 ~ 1755 MHz 2110 ~ 2155 MHz
LTE 700 MHz( A, B, C, D band optional)
2500 ~ 2550 MHz 2620 ~ 2670 MHz
Max .Gain 65dB 68dB
Max .Output Power 10dBm 15dBm
Band width (-3dB) Wide Band
MGC ( Step Attenuation ) 15dB / 5dB step
Automatic Level Control 15dB,auto shut off 31dB after 15dB
Gain Flatness ≤6dB(P-P)
Noise Figure 6dB
VSWR 1.8
Group Delay ≤5μs
Frequency stability 0.01ppm
Spurious Emission & Output inter-modulation GSM Meet ETSI TS 151 026 V6.1.0
WCDMA Meet 3GPP TS 25.143 ( V 6.2.0 )
CDMA Meet IS95 & CDMA2000
LED Alarm Standard
Power LED Green light when power on.
ALC LED Orange @ ALC 1~5dB, Red @ ALC 15dB~20dB,
LED off after 5 second red color
Mechanical Specifications Standard
I /O Port N-Female
Impedance 50 ohm
Operating Temperature -25ºC~+55ºC
Environment Conditions IP40
Dimensions 250*125*52mm
Weight 2.5Kg
Power Supply Input AC90~264V,output DC12V / 3A
