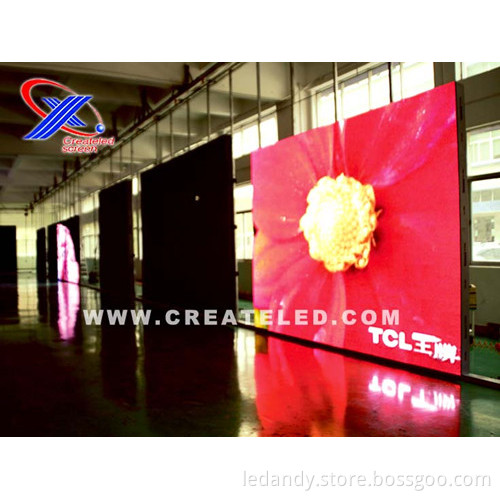

- CreateLED AirLED-7 LED display is the classical, enduring product, the ideal product to serving the highly demanding rental & staging market by offering the deepest black levels available on the market, AirLED-7 is also a very attractive product for fixed installations with minimal maintenance, limited thickness and low power consumption.
-
Key Benefits
1. Extremely close view distances and wide view angles.
2. Silent operation, little heat generated (no fans).
3. Standard panel design makes stocking, transportation, construction, spare parts and maintenance easy and simple.
4. Lightweight and seamless, precision extruded aluminum section structure.
5. Real white, brilliant colors, breathtaking grayscale. -
Ideal For: Events
Concert TouringCasinoPub & ClubTheater and ArtsTV ShowsCar Shows
MechanicalModule size: 250mm x 250mm
Panel size: 500mm x 500mm x 65mm
Panel weight: 7kg
Weight per m2: 28kg
Support frame in aluminum
Cooling: natural airflow(fan less design)
Video DisplayLED type: Black Body SMD 3 in 1
Resolution: 64 x 64 pixel/panel
Pixel pitch: 7.8mm
LED population: 16,384 LED/m2
Brightness: 1,200 Nits
Drive method: 1/8 scan method
Lifetime(50% brightness): 100,000 h
Colors: 281 trillion
Gray scale: 16 bit
Refresh rate: 1,200~4,000 Hz
Viewing angle: H:160°, V:100°
Dead Pixel Ratio: 0.0003
ElectricalPower supply: AC 220-240 V, 50/60 Hz
Power consumption: Avg 80 W/panel
MTBF ≥ 1,000 H
Ambience working temperature: -20~55
Ambience humidity: 85% at 25, 65% at 40
Control SystemSender Box input: USB connector
Sender Box output: RJ45 connector
Connection between PC and Sender Box: USB cable
Supported video input: DVI/HDMI/SDI
Software functions: display configuration, intensity adjustment, color calibration, content management, and system settings.
