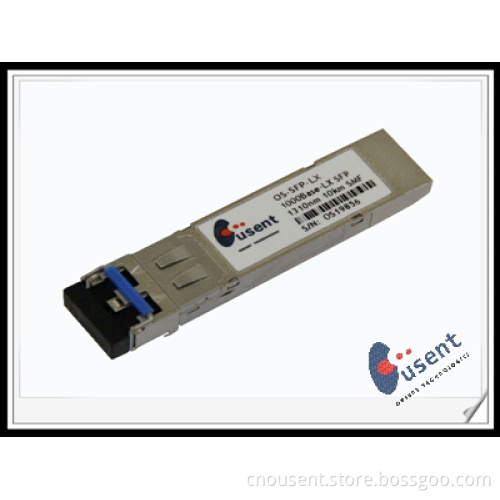

1.25G SFP Transceiver module 1310nm 10km 20km SMF

1.25G SFP Transceiver module 1310nm 10km 20km SMF

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

Specifications

  1.1000Base SFP Transceiver
2.SFP-LX/LX20,1310nm,FP,10km/20km,SMF
3.Apply with GE/FC
4.Certificated with RoHS/FDA/UL/FCC

  Features  *Operating data rate up to 1.25Gbps

*1310 nm FP LD Transmitter

*Distance up to 40km

*Single 3. 3V Power supply and TTL Logic Interface

*Duplex LC Connector Interface

*Hot Pluggable

*Operating Case Temperature

Standard: 0°C~+70°C

Industrial:-40°C~+85°C

*Compliant with MSA SFP Specification

*Digital diagnostic monitor interface Compatible with SFF-8472

Applications

*Gigabit Ethernet Switches and Routers

*Fiber Channel Switch infrastructure

*XDSL Applications

*Metro Edge Switching

Order information

Part No.	TX	Transmit(dBm)	Rx	Receive(dBm)	Distance	Temp(°C)	DDM
OS-SFP-LX	1310 FP	-3~-9.5	PIN	-3~-24	10Km	0~+70	NO
OS-SFP-LX20	1310 FP	-3~-9.5	PIN	-3~-24	20Km	0~+70	NO
OS-SFP-LXD	1310 FP	-3~-9.5	PIN	-3~-24	10Km	0~+70	YES
OS-SFP-LX20D	1310 FP	-3~-9.5	PIN	-3~-24	20Km	0~+70	YES
OS-SFP-LXI	1310 FP	-3~-9.5	PIN	-3~-24	10Km	-40~+85	NO
OS-SFP-LX20I	1310 FP	-3~-9.5	PIN	-3~-24	20Km	-40~+85	NO
OS-SFP-LXDI	1310 FP	-3~-9.5	PIN	-3~-24	10Km	-40~+85	YES
OS-SFP-LX20DI	1310 FP	-3~-9.5	PIN	-3~-24	20Km	-40~+85	YES
