Product Description
Product Description

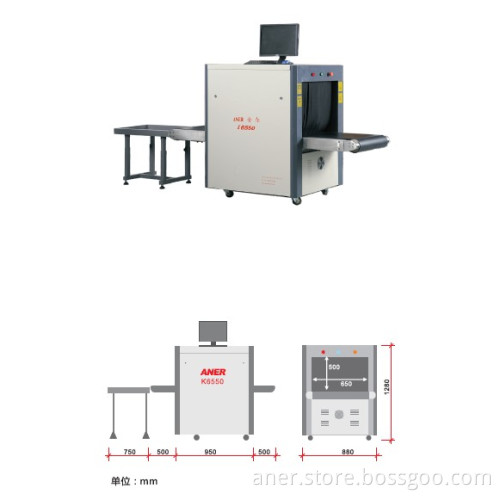

X-ray metal inspection machines


Product description
Basic parameters:
Size of the passageway  650(W)*500(H)mm
Speed of the belt: 0.22m/s
Rated load of the belt: 170Kg
resolving power : Diameter is 0.0787mm of the metal line
Space resolution : level:1.0mm   vertical: 1.0mm
Through resolution :
0.254mm
Penetration ability :   steel plate`s thick is 34mm
Film safety :  ISO1600 film is safe
 Leak dose :    <0.05Gy/h



X-ray generator:
Beam direction :   light from bottom
Tube current :  0.4~1.2mA(adjustable)
Tube voltage :  100--160 KV(adjustable)
spread Angle of the ray beam :  80°
Cooling/work cycle :   Sealed oil cooling/100%


Image processing system:
X ray sensor :  L photoelectric diode array detector(Much energy), 12bit depth
Display :    High resolution 17 "LCD display
Color image display :   According to the material is qualitative, 24 bits true color display
Edge enhancement :   The object contour edge clearer
Super image enhancement :   Image detail more clearly
High penetration show :  Improve the image of the bright contrast, make easy penetration area more clearly
Low penetration show :   Improve the image of the dark contrast, make difficult to penetrate area more clearly

Magnifier :   Local amplification function, real-time dynamic amplification
Brightening/ darken :   Increase the brightness of the image/ Reduce the brightness of the image
Image back to pull :    Before the show and image, and the image can be any image processing
Image restoration :   Image display restore the original state
Image storage :  Real-time save any image, and can be arbitrary image processing, continuous work save.


Image processing system:
Multi energy color :   Organic display for orange, Inorganic display for blue, Mixture display for the green
High energy/Low energy :  Two kinds of energy switch display
Drug and explosive auxiliary detection :  Some of the more typical auxiliary detection of drugs and explosives and other dangerous articles


Use environment :
System temperature/humidity :    0-45/20%-95% (No condensation)
Storage temperature/humidity :  -20
-60/20%-95% (No condensation)
System voltage :   220VAC(10%)  503HZ
Power loss :   1.1KW
(max)

Noise level :   <58dB
