Micro DC 3V-6V horizontal submersible pump for watering / DIY toys

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Micro DC 3V-6V horizontal submersible pump for watering / DIY toys / solar pumping

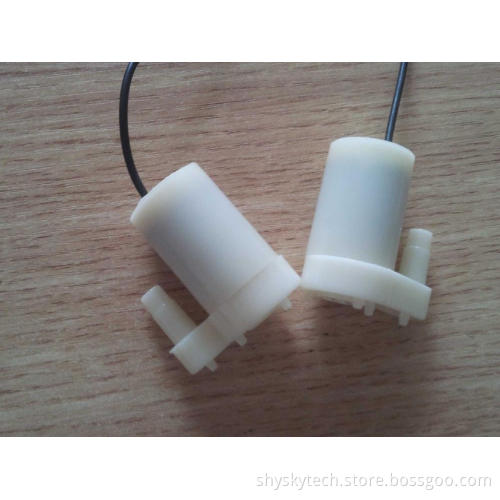

photo 20130909_121928_zpsdcf50d22.jpg

Specifications

Driving mode: brushless dc design, magnetic driving

Material: engineering plastic

Diameter: 24mm

Length: 46mm

Height: 33mm

Dimension of outle: 7.5mm O.D. / 4.7mm I.D.

Working voltage range: 3V-6V

Lift: 40cm-110cm

Flow rate: 80-120L/H

Power: 0.4-1.5w

Attention

Magnetic design, no direct connection of motor and impeller, no water leakage from turbine to motor

Submersible installed, pump should work under fluid surface, or high temperature and friction will cause relative loud noise and hurt pump itself

Keep the fluid clean, and clear pump regularly to avoid impurities clogging small pumps

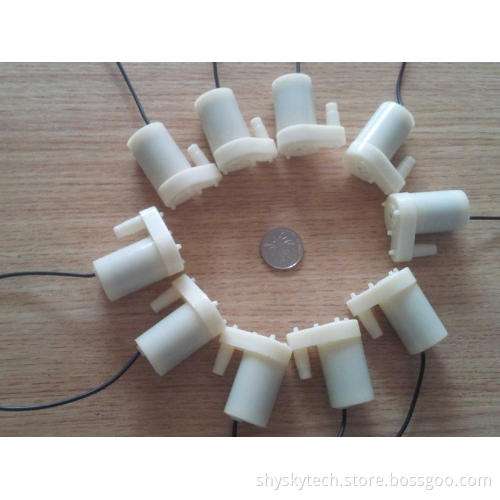

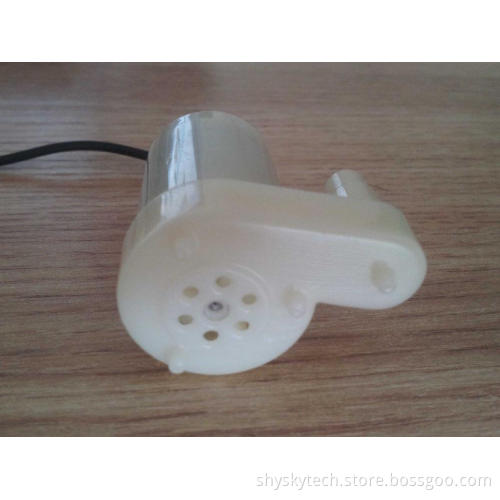

photo 20130909_122009_zps821573e1.jpg photo 20130909_121314_zps8656a5cc.jpg photo 20130909_121602_zpsb9a69da2.jpg

Application

Can be widely used in drinking fountains, medical equipment, micro water cooling system, water circulation system, etc.

photo 20130909_121403_zpse13cb6a4.jpg photo 20130909_121538_zpsc8625671.jpg
