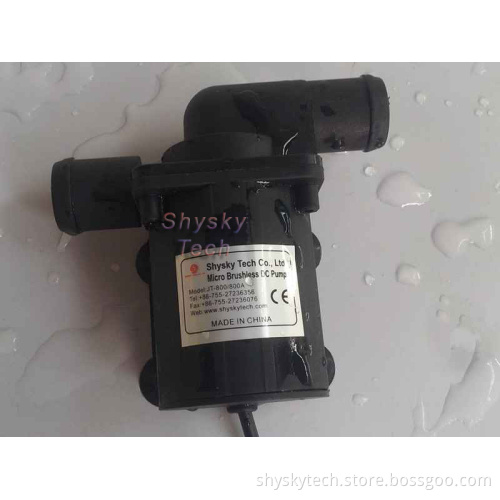

Micro Brushless DC water pump Submersible installation 6pcs 100C Lift 5M Flow 600LPH 100C Plumbing mattress Fountain

6-12Vdc Mini Brushless DC water pump Submersible installation 6pcs 100C Lift 5M Flow 600LPH 100C For Plumbing mattress Fountain

The quietest brushless pump now comparing with pumps of similar series

Built by a brushless motor so that quieter and last longer than a non-brushless pump, plus, it will not generate electric spark like the non-brushless pump does, so it's safer, can be used to pump oil (inflammable fluid)
Super long working lifespan (more than 100,000 hours), maintenance-free
Small size, low consumption, low noise(less than 35db within 0.5m)
Submersible and entirely waterproof, easy to install and use
Can be used to pump water, oil, acid and alkali solution
Variety of power supplies: solar panel, DC electric source and battery

Operating voltage :6-12V (voltage more than12V is not advised), current 1.65A at 12Vdc, Max static head 5meters, Max horizontal flow 600L / H. (Ultra power saving)

Materials: Pump body with high-temperature-proof plastic material. High strength and durable stainless steel shaft.

Structure: with four suction cups on the bottom, can be arbitrarily fixed on a smooth surface.

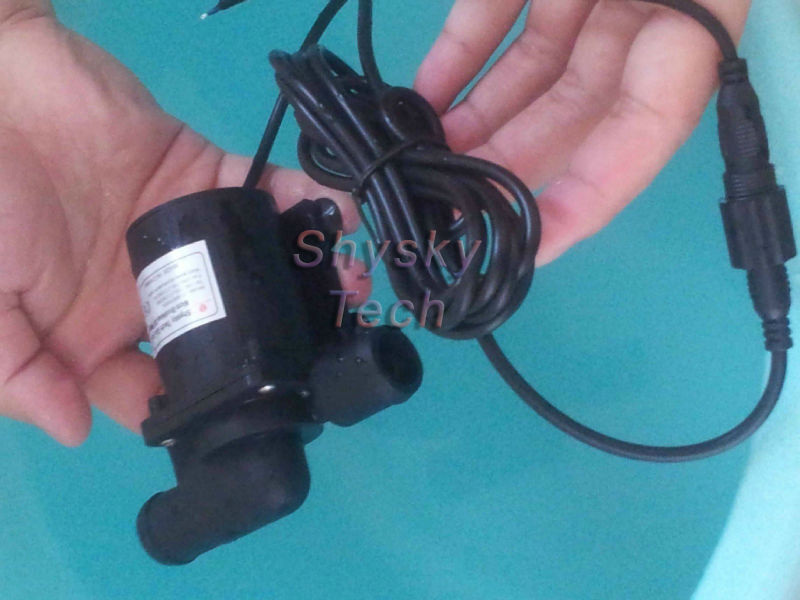

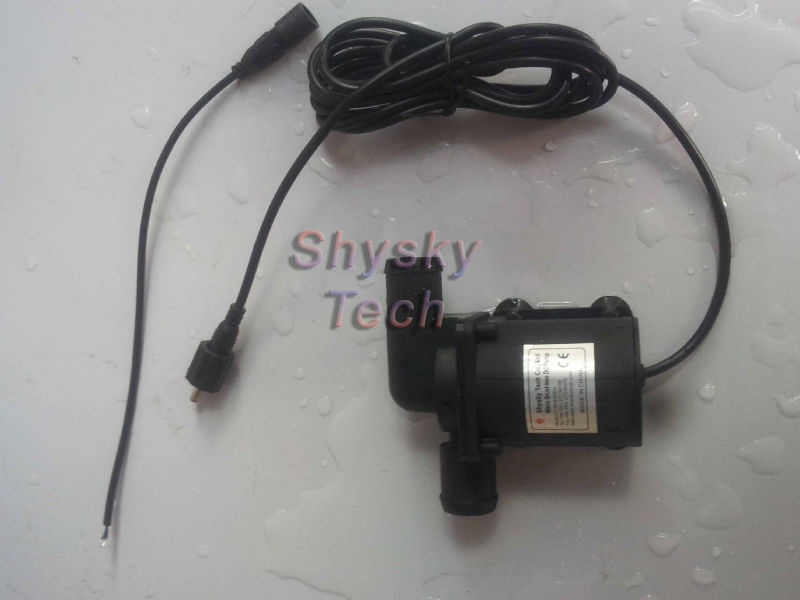

Power cord: diameter 3.0MM waterproof round wire length of 2 meters and waterproof connector.

Product size: 82.5MM * 86.5MM * 41.5MM (including water inlet and outlet)

Pump outlet diameter: OD 20MM, ID14MM

Pump inlet diameter:  OD 20MM, ID 14MM

Suitable medium: water, oil, and other acid-base solution. (Land use when pumping acidic liquids, submersible installation is not advised at this case)

Max Operating Temperature: resistance to high temperature of 100 degrees. Pumps can dive at room temperature, land use at high temperature(>75C). (Pump body material itself can be resistant to 200 degree Celsuis; considering reliability and stability of chips and other electronic componets, pump should work at 100C Max.)

pump can cling to the wall

Bottom with four suction cups, can be arbitrarily fixed on a smooth surface.

Dimensions

Package Included

6pcs x 800/800A-C-12V Micro Brushless DC Pump

How to Choose pump:
1. Make sure the working voltage, current, head and flow. The Max head means the static head. The pump can lift to the max heightwhen there is no flow. If you want special flow at special height, you must choose more higher head than the height you want to pump.
2. Make sure the dimension(threaded interface or not, the direction and diameter of outlet and inlet).
3. Working environment(temperature and medium).
4. Other functional requirements, such as time control, motion control, pressure control, flow control, and speed adjustment.

Note:
1. Working at rated voltage. The positive pole is Brown wire, the negative pole is Blue wire.
2. This pump is centrifugal pump, it can't vent the air automatically, so it must be operated by submersible installation.(if outside water installation, you should make sure it is installed blow the liquid surface)
3. When blocking, long-running is not allowed.
4. Preventing any hard particles entering the pumps.
