Max Head 8m, Max Flow Rate 1000L/H

3phase brushless design, No spark, Absolute safety

Long Life Span, More than 30,000hrs

Can stand high temp. as 100 degrees Celsuis

Fit for continuously pumping boiling water or other fluids

Low Noise, Completely Water Proof

Low Start-up Current, fit for PV Panel

Fit for various hot water pumping/ circulation/ pressurization sys.

The right is inlet, while the left is outlet

Specifications of this Pump

&&Micro Size: 94.1x99x50

&&Light Weight: 650g

&&Dimension of Inlet and Outlet: 20mm O.D., 1/2 thread

&&Power Saving: 43W

&&Low Noise: Less than 40dB

&&Wide Working Voltage Range: 5-12Vdc (12V rated)

&&Max Static Head: 8m(27ft)

&&Max Flow Rate: 17L/Min (4.5G/Min)

&&Fluids: Water, oil, gasoline, acid and alkali solution, etc

&&Power Supply: can be battery, DC electric source or solar panel, etc

&&Super Long Life: >3years, can be continuously working, without maintenance

&&Water Proof Class: IP68 (Fit for submersible installation)

potentiometer

Typical Features

>>3Phase brushless, permanent magnetic rotor, maintenance-free, long life

>>Can stand high temperature 100 degrees Celsuis, continuously pumping boiling water

>>Locked-rotor and reverse connection circuit protection, automatic overload protection

>>Soft-start with low in-rush current

>>Small size, high efficiency, low consumption, low noise

>>Stator and circuit board sealed by epoxy resin, completely water proof

>>Sleeve and shaft with carbon fiber materials, better performance than ceramic and metal materials

>>Parameter adjustable, 12v pump`s Max head can be adjusted from 0m to 8m

>>Can be customized for friends with bulk product demand

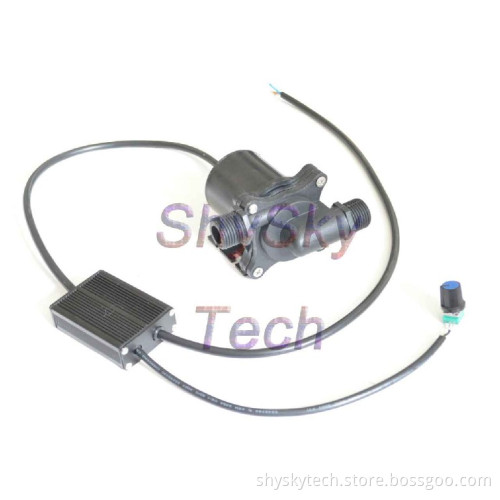

This pump is a 12Vdc Brushless DC Pump with power adjustable function. It can be adjusted by hands(through potentiometer) or external signal(injecting 0-5V Analog Signal), suitable for Changing Environment/ Self-adaptation Application/ Experiments with unclear parameters. The shell material is PA66+GF30%, which the material itself can stand 200°C high temperature. The shaft is made of carbon fiber material, with better toughness and wear resistance than common-used material or ceramic material. And the screws are made of 304 stainless steel material, so as a pump whole it can stand continuous 100C high temperature environment, also can be corrosion-proof to liquid environment such as hydrochloric acid liquid used for pipe cleaning, etc.

Applications

This pump has a wide range of aplications, such as car cooling, motorcycle cooling and other vehicle cooling, landscaping and garden pumping, PC cooling system, humidifier, medical device, and many other cooling and circulation system.

Note when use

No direct connection with AC power (needs AC/DC source adapter) or overlarge DC power

Pump can be powered by car battery, house-used battery, PV pandel or source adapter connected with AC power supply

No long work withou water, or it may damage or even burn the pump
