12V Mirco Brushless dc pump DC micro pump maintenance-free Low nise Long life For  computer cooling system Garden fountain

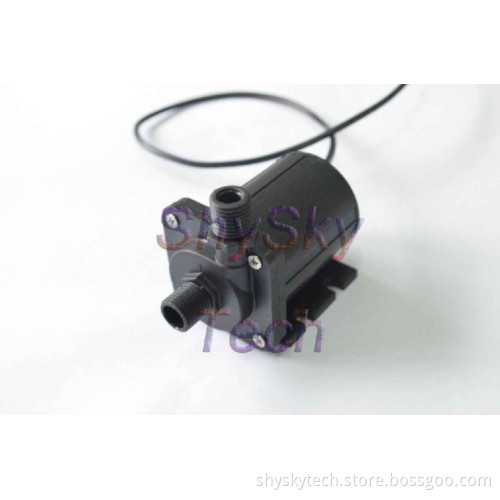

This is a high-quality made DC mini submersible pump
Built by a brushless motor so that quieter and last longer than a non-brushless pump, plus, it will not generate electric spark like the non-brushless pump does, so it's safer, can be used to pump oil (inflammable fluid)
Super long working lifespan (more than 30,000 hours), maintenance-free
Small size, low consumption, low noise(less than 35db)
Submersible and entirely waterproof, easy to install and use
Can be used to pump water, oil, acid and alkali solution
Variety of power supplies: solar panel, DC electric source and battery

For Pump, Water plays three roles: 1, the medium being pumped; 2, coolant of pump;3, lubricant of pump.

Features:

Brushless, permanent magnetic rotor, maintenance-free, long life

Small size, high efficiency, low consumption, low noise

Stator and circuit board sealed by epoxy resin, completely water proof

Parameter adjustable, 24v pump`s head can be adjusted from 2m to 6m

Can be fixed on the vessel wall with sucking disk

Can be customized for friends with bulk product demand

Specifications:

Sizes and weight:86mmx64mmx48mm; 300g

Dimension of Inlet and Outlet: 13.2mm(1/4 inch thread)

Power Saving: 13.2W

Low Noise: Less than 35dB

Wide Working Voltage Range: 5-12Vdc (12Vdc rated)

Max Static Head: 5.0m (16.ft)

Max Flow Rate: 8.3L/Min (2.2G/Min)

Fluids: Water, oil, gasoline, acid and alkali solution, etc

Power Supply: can be battery, DC electric source or solar panel, etc

Super Long Life: >3years, can be continuously working, without maintenance

Water Proof Class: IP68 (Fit for submersible installation)

Package included:

1 x DC40E-1250 DC Pump

This product can be used in many fields, such as computer cooling system, Garden fountain, Aquarium, car cooling system, humidifier, air conditioner, and many other cooling and circulation systems.

Head-Flow curve Graph

How to Choose pump:

1. Make sure the working voltage, current, head and flow. The Max head means the static head. The pump can lift to the max heightwhen there is no flow. If you want special flow at special height, you must choose more higher head than the height you want to pump(refer to the above Head-Flow Curve graph).

2. Make sure the dimension(threaded interface or not, the direction and diameter of outlet and inlet).

3. Working environment(temperature and medium).

4. Other functional requirements, such as time control, motion control, pressure control, flow control, and speed adjustment.

Note:

1. Working at rated voltage. The positive pole is red wire, the negative pole is black wire.

2. This pump is centrifugal pump, it can't vent the air automatically, so it must be operated by submersible installation.(if outside water installation, you should make sure it is installed blow the liquid surface)

3. When blocking, long-running is not allowed.

4. Preventing any hard particles entering the pumps.
