mini itx industrial motherboard with pci slot and Cf card sl
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Supply Ability: | 5000 |
| Certificate: | FCC / Rohs / CE |
The industrial motherboard (PCM5-928EM) in Mini-ITX form use 24 bits LVDS + VGA - 945 gse - c2 N270 processor + Intel 945 gse + ICH7MNavy Pier of three chip solution .Intel Atom N270 is one of the power only 2.5 W 45 nm process processor with basic frequency 1.6 GHz, 533 MHZ FSB. Intel 945 gse + ICH7Mchipset provide higher performance than the other Intel low power consumption scheme.
|
System Specification |
|
|
Processor |
Onboard CPU n270(1.6Ghz) |
|
BIOS |
AMI Plug & Play BIOS 8Mb SPI ROM |
|
System Chipset |
Intel ICH7-M+intel Atom N270 |
|
System Memory |
1 x DIMM, Max 2GB DDR2 667/800 |
|
Graphic Interface |
Integrated on Inte Atom N270,18-bit signal channel LVDS support VGA |
|
Ethernet Controller |
1x RJ-45, Gigabit Ethernet_RTL8111E |
|
I/O Chipset |
ITE 8718F/HX-L |
|
Serial |
4 x RS232(1xRS232/422/485), ports |
|
USB |
6 x USB ports, USB 2.0 compliant |
|
Watchdog Timer |
1~256 levels |
|
Key Features |
Support Intel Atom N270 , 4xCOM, 6xUSB |
|

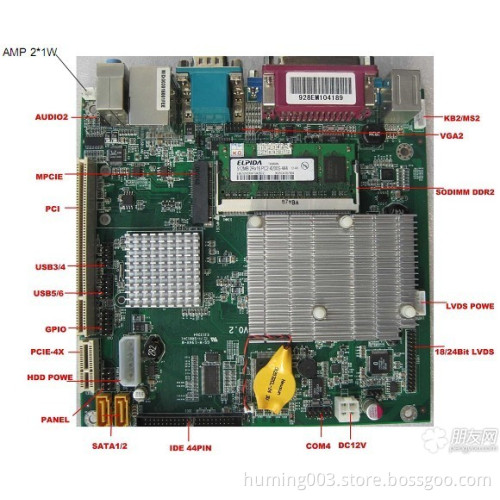

I/O Connectors |
|
|
Front Side I/O |
2 x USB Type-A Receptacle; 3x Com(Com1 support Rs232/422/485) 1xVGA; 1xLAN; 1xLPT; 1xPS/2; 1xMike in,mike out |
|
Onboard I/O |
4xUSB Type-A Receptacle; 1xCom 1xRAM slot; 1x CF slot; 2x sata; 1xLVDS (24 bit) |
|
Mechanical and Environment |
|
|
Dimensions (L x W) |
170x170 MM |
|
Power Input |
+12V DC IN (Lockable, Power Jack) |
