lbox-gm45 p8600 GM45 chipset indusdtril pc
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Supply Ability: | 2000 |
| Certificate: | FCC / Rohs / CE |

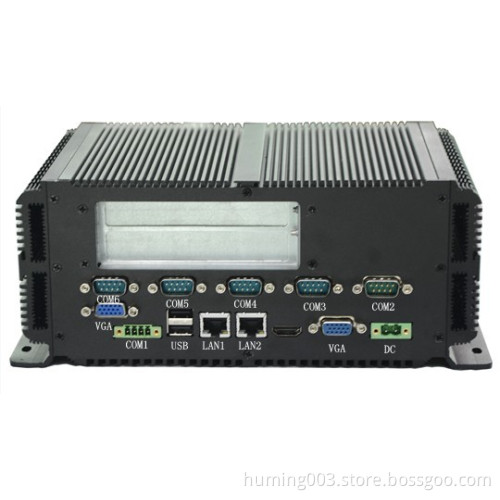

The Fanless industrial panel pc was made of brushed aluminum in beautiful shape, no cable is good at shockproof, and high performance at low power consumption, can be used in hard environments. It supports wireless 3G/WIFI.
|
Mini Industrial Embedded Computer |
|
|
Model Number |
Lbox-GM45 |
|
Color |
Black |
|
Chassis Material |
High quality aluminum alloy |
|
CPU |
Onboard Intel Core 2 Duo P8600( default) CPU |
|
Chipset |
Intel 82GM45+ICH9-M |
|
Memory |
two DDR3 SO-DIMM System Memory expansion Slots the motherboard memory up to 8GB 2 G memory default |
|
BIOS |
8Mb AMI SPI |
|
I / O Interface |
2*SATA, 1*LINE OUT&MIC |
|
1×LVDS(dual channel 24-bit) |
|
|
6*USB 1*LPT(optional) |
|
|
2 x VGA 1xVGA (default) |
|
|
1 x HDMI |
|
|
6xCOM ( 1xRS-232/ 1xRS-422/485, 3xRS-232/485) |
|
|
Ethernet port |
2 x RJ45 (2x10/100/1000 Mbps) |
|
Audio Features |
HD Audio Line-out,MIC-IN,5.1 |
|
Storage |
1*2.5" SATA Slot |
|
Expansion Bus |
A standard MINI PCI-E×1 bus interface |
|
A standard PCI-104 bus interface |
|
|
Watchdog |
256 level |
|
Power |
DC_IN 9V-26V |
|
Weight |
3.19Kg |
|
Dimension |
235.6*165.5*100mm (W*D*H) |
|
Operating temperature |
-20°C~60°C(Asked wide temperature HDD) |
|
Storage temperature |
-40°C~80°C |
|
Humidity |
5%~90%,non-condensing |
2.With the shockproof, moisture-proof, waterproof and dustproof (meet the NEMA IP65 standard), high temperature resistant, multi-solt and easy to expand characteristics, so it is widely used in industrial control,vehicle control, environmental control,Miliary, control,Monitoring system,Network security,Digital signage,Date storge and other automation applications.
