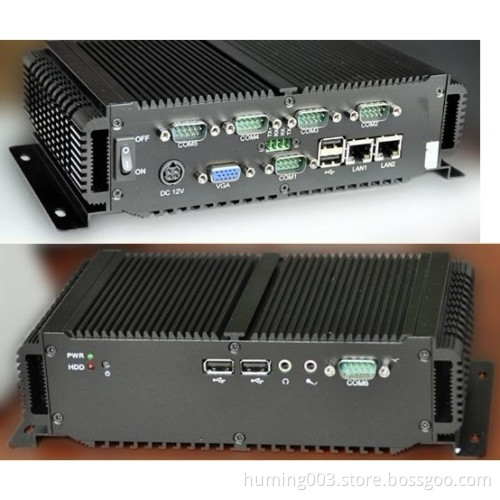

box pc with dual core intel atom D2550 ,shockproof ,Fanles
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Supply Ability: | 5000 |
| Certificate: | FCC / Rohs / CE |
1.Extreme Rugged and fanless design.
2.Intel Atom D2550 (1.86Ghz) at low power consumption with high performance,
3.Support full-automatic RS-485, WIFI, 3Gand HDMI, it's a multi-function industrial embedded computer.
4. Dual core Intel Atom D2550, 2xGbE,6xCOM,4xUSB
Feature:
Wide Operating Temperature(-20-75 degree)
Ultra Low Power and Fanless Design
Support RS-45 Auto-low Function
Support One VAG/HDMI Outputs
Support Fast Slot
Support Optional WIFI Connection
Wide Range DC Power Input
Rugged Design for Shock/Vibration Protectio
Easy Installation/Maintenance
Intel SATA SSD Compatible
More information as below
|
System Chipset |
Intel NM10+Intel Atom D2550 |
|
System Memory |
2 x DIMM, Max 8GB DDR3 1333/1066 |
|
Graphic Interface |
Integrated on Intel(R) Atom D2550,24-bit signal channel LVDS support HDMI VGA |
|
Ethernet Controller |
2x RJ-45, Gigabit Ethernet_RTL8111E |
|
I/O Chipset |
ITE8718F/HX-L |
|
Serial |
6 x RS232(1xRS232/422/485), ports |
|
USB |
4 x USB ports, USB 2.0 compliant |
|
Watchdog Timer |
1~256 levels |
|
Key Features |
Support dual core Intel Atom D525 2xGbE, 6xCOM, 4xUSB |
|
I/O Connectors |
|
|
Front Side I/O |
2 x USB Type-A Receptacle 1 x Power/HDD LED 1 x Power Reset Button 1 x Power on Button |
|
Back Side I/O |
2 x RJ-45(10/100/1000 Mbps) 1 x VGA 15P DSUB (male) 1xHDMI 5 x RS232(2xOptional include 1x RS232/422/485) 4 x USB Type-A Receptacle |
|
Mechanical and Environment |
|
|
Dimensions (L x W) |
210mm x125mmx60 mm |
|
Color |
S:Black |
|
Construction |
Aluminum housing / Metal |
|
Power Input |
+12V DC IN (Lockable, Power Jack) |
|
Net Weight (kg) (without touch) |
2.5KG |
