PCB prototype with Single sided, double sided circuit board from China PCB prototyping manufacturer
Your message must be between 20 to 2000 characters

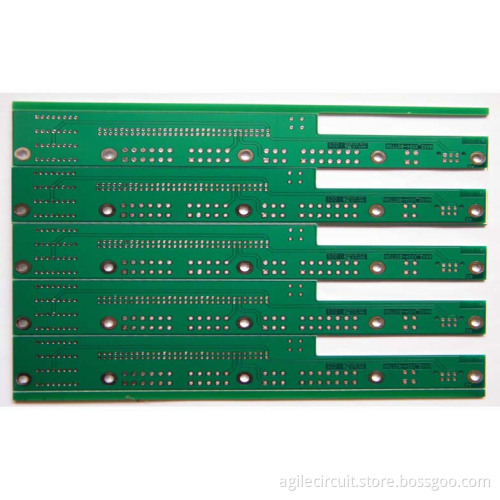

Contact Now- Double Sided PCB with standard spec.
- FR4 1.6mm thickness
- PCB Prototyping Fabrication at low cost
- For DIY lover
- Used in Headphone Systems
PCB prototype with Single sided, double sided circuit board from China PCB prototyping manufacturer
Description:
PCB manufacturing facility serving the prototype and low volume pcb production requirements of contract PCB assemblers, electronics manufacturers, research &design engineering company, electronic hobbyist and university in the field of communications, consumer electronics, industrial control, education, automotive and medical equipment.
Specification:
|
Layer count |
Single sided, Double sided, Multilayer to 26 Layers |
|
Base material |
FR4, High Tg FR4, CEM-3, Aluminum Base, Copper core, High frequency, Polyimide (PI), Polyester(PET) ,Rogers RO4350,Polyimide,Teflon,Getek Copper Clad Thermal Substrates |
|
Board thickness |
0.2mm, 0.4mm, 0.8mm, 1.0mm. 1.2mm.1.6mm.2.0mm-2.4mm, 3.2mm,4.0mm |
|
Maximum Board Size |
580mmx700mm |
|
Copper thickness |
0.5oz, 1oz, 2oz ,3oz., 4oz,5oz,6oz |
|
Minimum Hole Size |
0.2mm |
|
Minimum Trace/Space |
4mil/4mil |
|
Surface finish |
HASL(Hot Air Solder Level), Pb Free HASL , Electroless Nickel and Immersion Gold (ENIG), Plating Gold, Gold Fingers (Gold Connector), Silver Immersion, Organic Surface Protectant (OSP), Electroless Nickel Electroless Palladium Immersion Gold (ENEPIG),Hard Gold |
|
Solder Mask |
Green, Red, Blue, Black, Matte Green, Orange |
|
Silk Screen |
White, Yellow, Black |
|
PCB Fabrication |
Scoring, Route, V-Score, Counter Sink, Bevel, Cutouts and Slots |
|
Quality Control |
IPC 6012 Class 2, Electrical Testing, Flying probe Testing, 100% Netlist Testing |
|
Special Technology |
Impendence Control, Differencial PCB printed circuit board, Peelabemask PCB , High Density PCB HDI, Heavy copper PCB ,Metal Core circuit boards ,Copper Clad PCB printed circuit board, Blind & Buried Vias, Laser Drilled Vias, Burn-in Boards,Flex Boards, Rigid Flex PCB printed circuit board , Edge half plated thru hole Circuit boards, Selective Plating Hard Gold, Special Thin or Special Thick PCB board, PCB with Resin Plugged Hole
|
Applications:
Cooling and Washing machine, Home Computer, Home Theater/Stereo Surround Sound System, Cable Television Converter Box, Hand Held Video Games, Digital and analog Switching, Remote control electronic toys, Disk Drive duplication systems, LOJACK auto recovery system, Electronic Television Audience Measurement Systems/Electronic Audience Measurement Systems,Headphone Systems ect.
Advantage:
- No MOQ, low cost for small quantity prototype. We panelize prototype circuit boards on a big panel which will share set-up cost with other customers, which could save a lot PCB tooling cost for small quantity PCB prototype.
- PCB manufacturing on spec. We have professional engineering in the each production process from evaluating cost, checking and assessing Gerber requirement, making MI to production and final inspection to guarantee circuit board quality.
- Meeting your printed circuit board needs from PCB prototyping to mid-volume production
- ISO/TS certified PCB manufacturing factory.
- Deliver on time. We keep higher than 95% on-time-delivery rate
- Combined service to arrange your PCB to you by DDU TO DOOR shipment with competitive shipping cost. You don`t need to arrange anything after confirm the order just wait for your PCB deliver to your hand.
- Offer free DRC for DFM to our customer.
- Decades experience in supporting manufacturing PCB requirement from a wide range of industries
