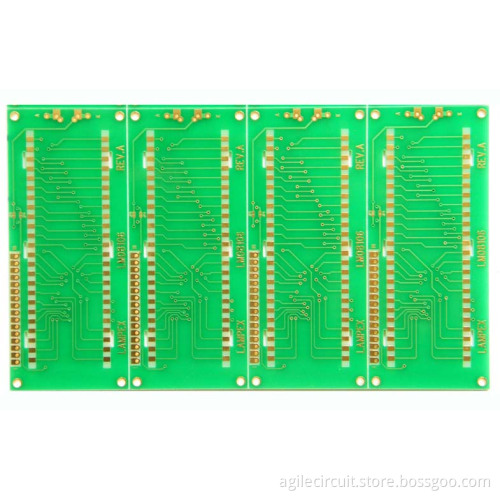

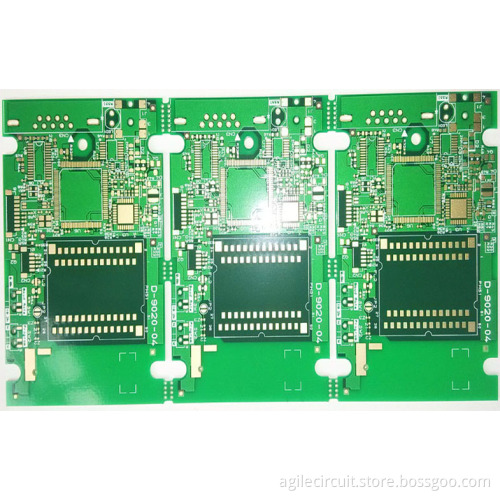

Custom PCB fabrication & assembly with prototype to middle run from China PCB house

1. Double sided SMT & wave soldering assembly

2. PCB fabrication and assembly in 1 stop solution

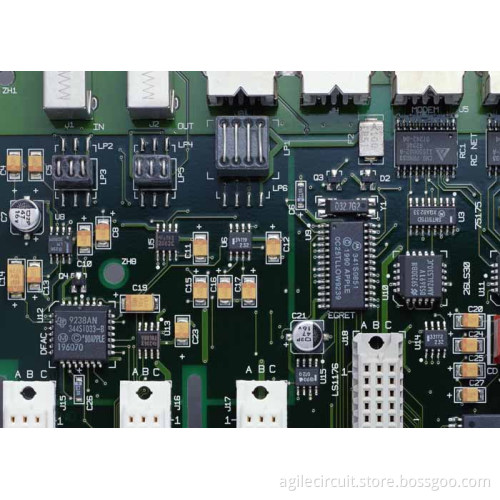

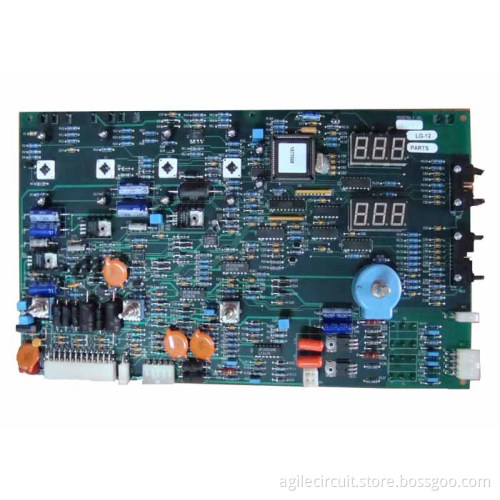

3. PCB board with both side SMD and THT parts

4. Applicated in industrial control

5. EMS PCB provider from China

Description

Agile Circuit provides printed circuit board PCB Fabrication and assembly full turn-key PCB contract manufacturing and also partial bare circuit boards fabrication or PCB assembly services. Based in Shenzhen, Guangdong, we have been engaged in PCB fabrication and PCB assembly, serving many OEM & ODM electronics manufacturer, research & development engineering company from all over the world more than 6 years.

PCB fabrication Spec:

Layers	Mass production: 1~26 layers
Max. Thickness	Mass production: 4.0mm
Material	FR-4 (Standard FR4, Medium Tg FR4,High Tg FR4, Lead free assembly material) , Halogen-Free, Ceramic filled , Teflon, Polyimide, BT, Hybrid, Rogers etc.
Min. Width/Spacing	Inner layer: 3mil/3mil (0.5oz), Outer layer: 4mil/4mil(1oz)
Max. Copper Thickness	6.0 oz
Min. Hole Size	Mechanical drill: 8mil Laser drill: 3mil
Max. Panel Size	600mm × 700mm
Aspect Ratio	12:1
Surface Finish	HASL, Immersion Gold, Immersion Tin, OSP, ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger
Special Process	Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity, Hybrid, Partial hybrid, Partial high density, Back drilling, and Resistance control.

PCB Assembly Spec.:

SMT	Position accuracy: 20 um
	Components size: 0804,0603,0402,Flip-CHIP,QFP,BGA,POP
	Max. component height:25mm
	Max. PCB size:580×600mm
	Min. PCB size: no limited
	PCB thickness:0.3 to 6mm
Wave-Solder	Max. PCB width:450mm
	Min. PCB width: no limited
	Component height: Top 120mm/ Bot 15mm
Sweat-Solder	Metal type :part, whole, inlay, sidestep
	Metal material: Copper , Aluminum
	Surface Finish: plating Au, plating sliver , plating Sn
	Air bladder rate: less than20%
Press-fit	Press range:0-50KN
Press-fit	Max. PCB size:800X600mm
Testing	ICT, Probe flying, burn-in, function test, temperature cycling

Applications:

Digital Wrist Watch, CD Player, Power Supply,Am/FM/Radio/Alarm Clock, Industrial control,Television, Calculator, Digital Coffee Pot, Microwave Oven, Home Alarm Systems, Cellular Telephone, Home Computer, Home Theater/Stereo Surround Sound System, Cable Television Converter Box, Hand Held Video Games, Remote control electronic toy, LOJACK auto recovery system etc.

Competetive

1. Affordable Cost, Stable Quality

Years of manufacturing experience of our factory, standard PCB fabricating process, state-of-the-art PCB produce technology, supreme supply chain management, strict trained staff enable our circuit boards are at affordable in good quality.

2. Flexibility, Quick response

We are flexible with delivery schedules and able to provide relatively fast turnaround on both sample and mass PCB production quantities. Quick turn PCB prototyping service with delivery is available for 24 hours.

3. On-time delivery, High customer satisfactory

Our delivery reliability rate is above 95%.Our PCB factory pioneer the end-to-end WIP online software which manages every step of your circuit board project. This ensures our quality manufacturing process for timely delivery.

How To PCB Quote

As a professional one stop solution for PCB fab. and PCB assembly, our objective is "customer-oriented, fast, high-quality customer services". We provide quick PCB quote service.

Send us your circuit board requirement today!

(1) Gerber data
(2) Aperture list or lists
(3) Drill file in Gerber or excellon format
(4) BOM list with parts details
