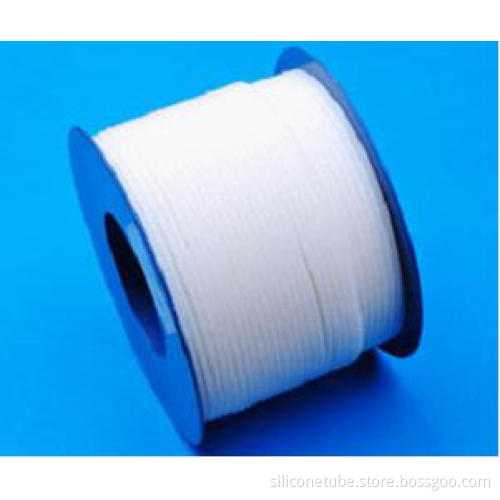

high quality insulation ptfe tube
GRADE:SB-PTFE
STRUCTURE&USAGE
PTFE Tube manufacture by extrusion process with imported high quality PTFE resin. It has excellent high temperature resistance, high voltage resistance, abrasion resistance and self-lubricating properties. It widely used in mechanical industries, electronic and electric products, motor vehicle, aerospace, chemical industry, communications etc.
CHARACTERISTICS
1.Operating Temperature: -800C~2600C;
2. Excellent anti-corrosion (anti-acid/alkaline/chemical/oil);
3. High voltage resistance (45kv/mm)
SPECIFICATION
|
Item |
Standard |
Item |
Standard |
|
Relative Density |
2.14~2.20 |
Melting Point (0C) |
327 |
|
Tensile Strength (MPa) |
25 |
Operating Temperature (0C) |
-80~260 |
|
Stretch Yield Strength (MPa) |
11 |
Oxygen index(%) |
>90 |
|
Elongation (%) |
300 |
Water Absorption (%) |
<0.01 |
|
Arc Resistance |
>300 |
Linear Expansion Coefficient (105/0C)21~1000C |
10 |
|
Shore Hardness (D) |
59~63 |
breakdown strength (kv/mm) |
45 |
|
|
|
volume resistance (.cm) |
11016 |
