Ltl acorn 6210M 6210MM 12MP 1080P HD video MMS scouting trail camera hunting camera Ltl-6210MM MMS camera with external antenna

Item specifics Brand Name: Ltl Acorn
Model Number: Ltl-6210MM
Environment: Indoor Outdoor
SMS/MMS/EMAIL: Yes
Infrared Night Vision: Yes
PIR Detection: Yes
Video: Yes
Sensor: CMOS
Place of Origin: Zhejiang, China (Mainland)
Product Description

12MP 1080P HD video  MMS scouting trail camera hunting camera Ltl-6210MM MMS camera with external antenna



Also We sale SD Card:4GB,8GB,16GB

SD Card online purchase link:







Ltl Acorn ® Model Ltl-6210M) The Ltl Acorn Ltl-6210M is a step-up to Ltl-5210M. It provides enhanced features and better performances. Bundled with the MMS-module (Multimedia Messaging Service) (Part # LTL-MM2), the standard scouting camera (Part # Ltl-6210MC be upgraded to work as a remote cellular camera. With its highly sensitive Passive Infra-Red (PIR) sensor, the camera detects the sudden change of ambient temperature caused by moving game in a region of interest (ROI), triggers to take pictures/videos, and sends the images via GSM network to the user?s cell phone or email account.

There are two selects of IR LED on the Ltl-6210M series camera, 850nm and 940nm. The former provides up to 82-foot flash range whereas the latter up to 42-foot flash range. The of 940nm IR LED, however, is it emits no-glow flash that is invisible in the dark.

Features:

· 5M/12M/2M pixel high-quality resolution.
· 1440 x 1080 / 1280 x 720 / 640x480 H.264/AVC format HD video with a u d i o
  Infrared night vision LEDs 850nm for flash range as far as 75 feet (25m)
  (No-glow model 940nm has 39 feet (13m) flash range)
· ?Cam + Video? mode enables camera to take both picture and video at every trigger event
· Continuous shooting interval time about 0.5 or 1.0 seconds (stamp off or On)
· Extremely long in-field life (in standby mode, up to 6 months with 12 x AA batteries)
· Unique side Prep Sensor design provides wider sensing angle and enhances camera?s response speed
· Perform in the most temperatures from -22°F (-30°C) to 158°F (70°C)
· Compact size (5 ½ x 3 ½ x 3 inches). Well designed to deploy covertly Impressively quick trigger time (1.2 second)
· Programmable to work as Time-Lapse camera taking pictures/videos in long range day and night
· When Timer setting on, programmable to only work in specified period every day. This feature be used together with Time Lapse feature to meet your timetable
· In camera?s bottom cover built-in 2.0? TFT color display to review images and videos.
· Date, time, temperature, moon phase and battery level be stamped on picture
· Lockable and password protected
· Send 640 x 480 resolution MMS image
· Setup is a snap by running the user-friendly software on the enclosed CD on the computer, or directly on the built-in TFT display.
· change several language of the menu through setting country in MMS menu or in PC Setup
· Separation of the Camera and the MMS module provides users flexibility: starting withthe value models a standard scouting camera, and upgrading to the premium model with MMS function.
· SD card be set in ?Cycling Save? mode, which automatically deletes the earliest photos or videos and makes room for new ones.
· Advanced Remote Cellular Technology transmits images to your cell phone and/or email account constantly at lower battery consumption and shorter transmission time, compared to products of its kind  on the market.
· Text alert when battery power level goes low
· Check cellular signal reception on the built-in TFT display on the field

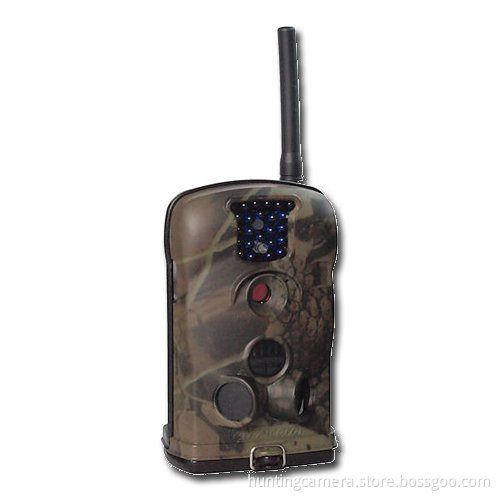

· Internal antenna design. External antenna is available when using security box.
· Operates globally via GSM/GPRS network. Supports four bands: 850 / 900 / 1800 /1900MHz.

Application:

· Trail camera for hunting, Hunters - Trails, Food Plots, Feeders, Property Surveillance and Observation
· Animal or event observation, University Research and Studies - Wildlife Observation and Research
· Motion-triggered security camera, for home, office and community
. Law Enforcement and Environmental Agencies - Illegal Dumping, Vandalism and Theft
· All other indoor/outdoor surveillance where intrusion evidence and live alert needed

  Accessories:

Digital Camera: 1 in Camo color



LTL-MM2 MMS Mode: 1( Ltl-6210MM)
TV AV IN cable: 1 USB cable: 1 Strap: 1 CD: 1 User Manual and Warranty Card: 1 SD Card   (optional) external antenna:1



Software MMS Setup Support in auto mode:

"Portugal","Turkey","Spain","Slovakia", "Slovenia","Russia","Romania","Poland",

"Italy","Ireland","Hungary","Greece","France","Australia""Brazil",

"Bulgaria","Croatia","Czech Republic","Denmark","Finland",

"New Zealand","South Africa","Egypt", "Ukraine",

"Canada","Lithuania","India".

"USA"(T-Mobile, AT&T)

"Switzerland"(Orange,Sunrise)

"Netherlands",(T-mobile, Vodafone)

"Austria"(A1, T-Mobile)

"Norway"(Netcom, Telenor)

"Sweden"(Telenor, Telia)

"UK" (Vodafone, O2, T-Mobile, Orange, 3, Virgin, Tesko, BT Mobile, ASDA)

"Germany"(Vodafone, T-Mobile, E-Plus, O2)





Model	Parameters
Image Sensor	5 Mega Pixels Color CMOS	Yes
Max. Pixel Size	2560x1920	Yes
Lens	F=3.1; FOV=52°; Auto IR-Cut	Yes
IR Flash	850nM:82 Feet/25 Meters,940nM:42 Feet/13 Meters	Yes
LCD Screen	40.8x30.6mm(2.0"); 960(RGB)*240DOT;16.7M Color	Yes
Operation Keypad	6 Keys	Yes
Memory	SD Card (8MB ~32GB)	Yes
Picture Size	5MP/12MP/2MP = 2560X1920/4000X3000/1600X1200;	Yes
Video Size	1440x1080: 15 fps; 1280x720: 30fps; 640x480: 30fps;	Yes
PIR Sensitivity	High/Normal/Low	Yes
PIR Sensing Distance	82ft/25m(Below 77°F/25°C at the Normal Level)	Yes
Prep PIR  Sensing Angle	Left and right light beams form an angle of 100°; Each lens covers 10°	Yes
Main PIR Sensing Angle	35°	Yes
Operation Mode	Day/Night	Yes
Trigger Time	1.2Second (When using the 2G SD card)	Yes
Trigger Interval	0sec. - 60min; Programmable	Yes
Shooting Numbers	1~3	Yes
Video Length	1-60sec.; Programmable	Yes
Camera + Video	First take Picture then Video	Yes
Playback Zoom In	1~16 Times	Yes
Time Stamp	On/Off; Include serial No., temperature and moon phase	Yes
Timer	On/Off; Programmable	Yes
Password	4-Digit Numbers	Yes
Device Serial No.	4 digits and 26 alphabets set by yourself	Yes
Time Lapse	On/Off; 1 Second ~ 24 Hours Programmable	Yes
SD Card cycle Save	On/Off;	Yes
MMS Options	VGA=640x480;SMS;OFF,Programmable	Yes
MMS Numbers	"0? = Unlimited; 0 ~ 99/Day	Yes
MMS Phone No.	1 ~ 3 Phone Numbers	Yes
MMS E-mail	0 ~ 3 E-mail address	Yes
SMS	1~3	Yes
Low-Battery SMS Alert	"Battery Low? text alert sent	Yes
language setting	Change Country Setting Language	Yes
Power Supply	12xAA;	Yes
External DC Power Supply	Plug Size: 4.0x1.7,6 ~ 12V (1 ~ 2A)	Yes
Stand-by Current	0.4mA	Yes
Stand-by Time	4-6 Months(12xAA)	Yes
Auto Power Off	Auto power off in 2 minutes if no keypad input	Yes
Power Consumption	150mA (+350mA when IR LED lights up)	Yes
Low Battery Alert	4.2~4.3V	Yes
Interface	TV out ; USB; SD Card and SIM Slot; 6V DC External	Yes
Mounting	Strap; Tripod	Yes
Waterproof	IP54	Yes
Operation Temperature	-22~+158°F/-30 ~+70°C	Yes
Operation Humidity	5% ~ 95%	Yes
Certificate	FCC & CE & ROHS	Yes
