hunting camera

 GENERAL INFORMATION

1.1     Introduction

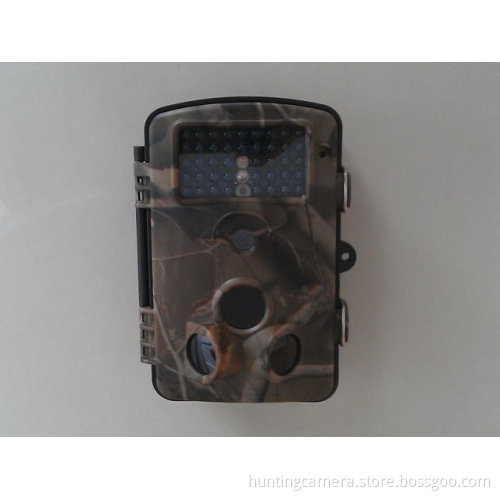

The trail camera (also called game camera/trail camera) is a scouting device. It can be triggered by sudden change of ambient temperature caused by moving game in a region of interest (ROI), which is detected by a highly sensitive Passive Infra-Red (PIR) sensor, and then take pictures or video clips automatically.

The Feature:
l          5/8/12 Mega Pixels CMOS sensor.
l          Sharp and bright color pictures in daytime and clear black/white pictures at night
l          Ultra low standby power consumption .Extremely long in- field life(in standby mode ,up to 1 months with 4 x AA  batteries and 2 Months with 8 x AA batteries)
l          Unique side Prep Sensor design provides wider sensing angle and enhances camera's response speed
l          Compact size(5 1/2 x 3 1/2 x 2 1/2 inches).Well designed to deploy covertly
l          Impressively quick trigger time (1 second)
l          Backpack-looking tree grabber makes mounting and aiming a snap
l          Date ,time can be stamped in the pictures
l          Lockable and password protected

1.2 Application
. Trail camera for hunting
. Animal or event observations
. Motion-Triggered security camera, for home, office and community
. All other indoor/outdoor surveillance where invasion evidence needed

1.2     Illustration

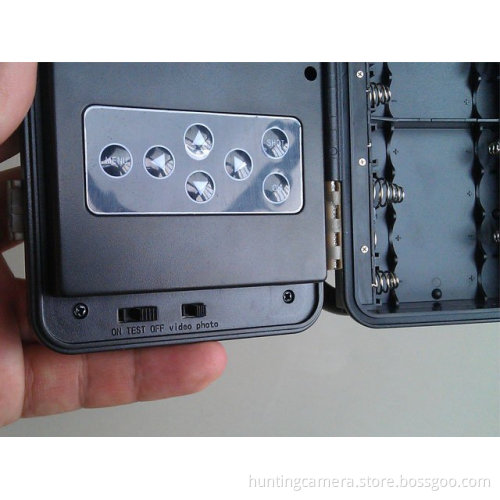

The camera provides the following connections for external devices: USB port, SD card slot, TV out jack, and external DC power in jack .The 3-way Power/Mode Switch is used to select the main operation modes : OFF , ON and TEST.

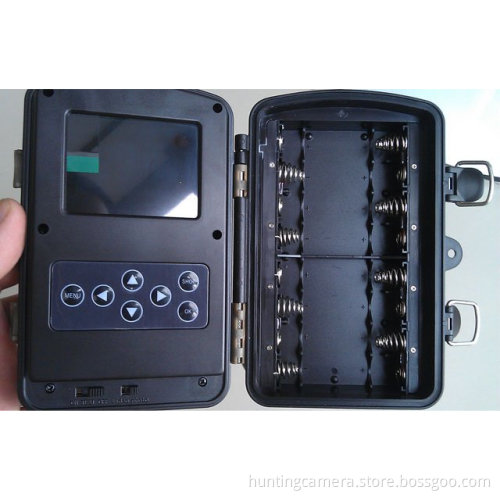

To supply power, it is recommended to use four new high-performance alkaline AA batteries or low self-discharge Ni-MH chargeable AA batteries. To achieve longer in- field time, install the additional battery box which contains four more AA batteries.
