3 years warranty 18w smd3528 1.8m pf0.95 ul t10 led tube lig

Product Details:

Light Source: LED

Item Type: Tube Lights

LED Light Source: 3528 SMD

Warranty(Years): 3

Input Voltage(V): 90-277

Lamp power (W): 40

Lamp Luminous Flux(lm): 4000

Lamp Luminous Efficiency(lm/w):100

CRI (Ra) : 75

Color temperature(CCT): 2700-3500K,4000-4500K, 5700-6500K

Working temperature():-20 -- +50

Working Lifetime (Hour): 50000

Lamp Body Material: PC

Certification: CE, EMC, FCC, LVD, PSE, RoHS, UL

Place of Origin:Guangdong,China(Mainland)

Brand Name: Gielight

Model Numbel: T10

Shape: Round

Model Number: GL-UL-C

Correlated Color Temperature: Amber white, Warm white, Pure white, Cool white

Material: Aluminium + PC cover

Usage: Houses, offices, hotels, restaurants, schools, workshops, storage, road



Payment & Shipping Terms:

FOB Price: US $19-60/piece

Minimum order Quantity:2 pieces

Port: Shenzhen

Packaging Details: Carton/PE foam

Delivery Time: 3-5 days for samples, 13-15 working days for orders of 4000pcs

Payment Terms: L/C, T/T, Western Union

Supply Ability: 40000 Piece/pieces per mouth



Product Features:

1.UL certification

2.supper highbrightness with 4000ml, 100ml/w,Power factor can reach 0.99, 40w

3.2.4M length is supplied, and other size or length can order

4.One led died, others continue working well

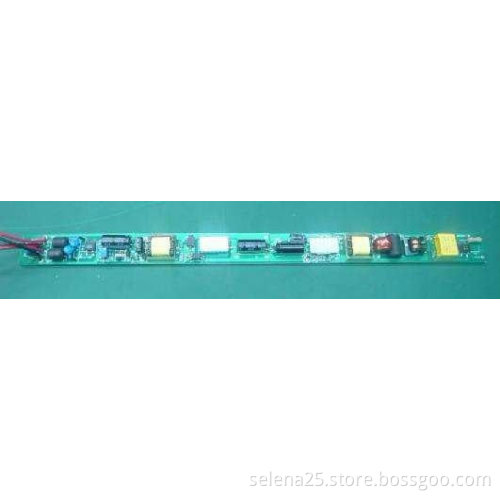

5.Reliable driver, designed and produced by ourselves

6.Patented design: Aluminum inner pipe + PC outer pipe

7.      Excellent heat dissipation:

Dig many tiny holes on the PCB: increase heat dissipation area

Brush silicon gel on the back of PCB, to expedited heat conduction

Driver without heat shrink tubing will have better heat dissipation

8.single pin for 2.4M LED tube light, we also can make Rotatable plastic end cap (90 degree), can meet different fitting



Transparent or Frosted LED Tube: Type LI



Specification:

Type No.	Length	Dia	LED Qty	Watt	LED Type	Lumen
GL-UL-A	0.6m	30mm	144 pcs	8W	SMD 3528	800 lm10%
GL-UL-B	1.2m	30mm	288 pcs	18W	SMD 3528	1800 lm10%
GL-UL-C	2.4m	30mm	648 pcs	40W	SMD 3528	4000 lm10%



















Other size 900mm/1500mm/1800mm are availabe.



Electrical Parameters

  Input Voltage: 90-277VAC

  Frequency: 50/60Hz

  Power factor:  0.95-0.99

  Light efficiency: 100LM/W



Optical Parameters

  Color-Rendering Index: 75/80Ra

  Color Temperature: 2700-3500K/4000-4500K/ 5500-6500k.



Other Parameters

 Product Patents:Yes

 Operating Temperature:  -25---50oC,

 Appearance: Frosted / Transparent

 Main Material: Aluminum inner pipe + Outer PC Cover

 Life Span; 50,000 hours



Certificates

CE, ROHS, FCC,ITACS, UL, cUL



Warranty: 3 years.

 a. Within the warranty period,Gielight provides free repairing service. If the certain item can not be repaired, Gielight will offer the new one for replacement at no extra cost.



b. Within the warranty period, Gielight bears the shipping cost back and forth for replacing the defective goods, on condition that the defection rate equals to or exceeds 2% of the ordered quantity for each shipment.





Customer Comments:

1. A client fromUSA: I`ve visited approximately 25 factories so far inChinafor led tube and I like your product quality and designs. Your factory showed nicely and I would like to discuss more with you. I`m thinking about having another visit to your factory, this time with some colleagues.



2. A client fromUK: We have just had excellent feedback on a trial classroom that we fitted out with your 1500mm SMD LED T8 tube lamps, and I thought that I would share it with you:

Wow! What a difference! It actually does transform the look of the room as well as provide better quality of lighting. The area that used to be darkest is transformed and we've noticed that the children's work is significantly better illuminated without creating an overly bright classroom - it doesn't look like a supermarket. The new system has somehow created more light in all the right places, but avoided the need for sunglasses.Excellent. Let's meet to work out changing the rest of the school.



Applications:

Houses, offices, exhibitions, meeting rooms, hotels, restaurants, schools, factories, hospitals, workshops, storages, roads, streets, etc.
